Electro Permanent Magnetic Chuck Ep50

Product Description

Electro Permanent Magnetic Chuck EP50
Electro-Permanent Magnetic Chuck is one of magnetic chuck or magnetic clamps for machining, milling, grinding and lathing. Please see our most popular item EP50 Electro Permanent Magnetic Chuck as below:

Model	Length(+-mm)	Width(+-mm)	High(+-mm)	poles number	Weight(kg)
					Net	Gross
EP50-205	470	258	68	18	64	72
EP50-206	595	258		24	81	89
EP50-208	775	258		30	106	116
EP50-209	900	258		36	123	133
EP50-210	1025	258		42	140	152
EP50-303	327	315		16	54	62
EP50-305	470	315		24	78	86
EP50-306	595	315		32	99	109
EP50-308	775	315		40	129	139
EP50-309	900	315		48	150	162
EP50-310	1025	315		56	171	183
EP50-403	430	320		24	73	82
EP50-405	490	430		36	112	120
EP50-406	605	436		48	140	150
EP50-408	775	436		60	179	189
EP50-409	900	436		72	208	220
EP50-410	1000	400		84	214	226
EP50-503	500	315		28	83	92
EP50-505	510	500		42	135	142
EP50-506	605	500		56	160	170
EP50-508	770	500		70	204	214
EP50-509	900	500		84	238	250
EP50-510	1010	500		98	267	278
EP50-603	600	310		32	98	106
EP50-605	600	437		48	139	149
EP50-606	615	600		72	195	207
EP50-608	625	770		90	255	267
EP50-609	890	615		108	290	320
EP50-610	1010	615		126	329	349

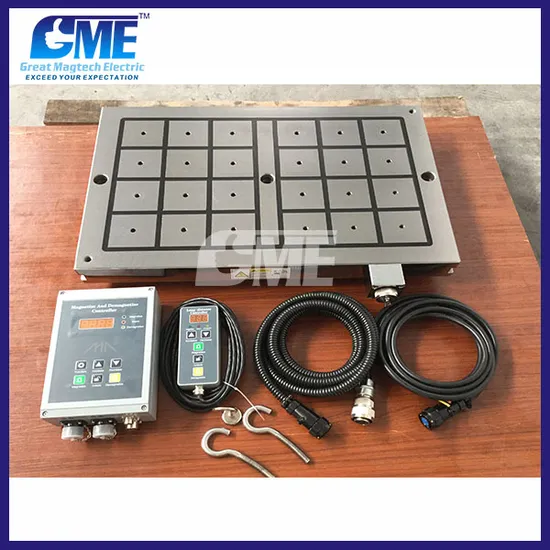

Material and Accessory of Electro Permanent Magnetic Chuck EP50:
1. High Consistency Alnico Magnet and Neodymium Magnet, guarantee the table surface suction strength stability.
2. Controller, power supply for electromagnet 220V and 380V Option. Controller Manual.
3. Connector and Socket: Importing from Korea and high waterproof.
4. Long Steel cable, high waterproof.
5. Table face and side: Polishing and grinding treatment for high precision Parallelism. Customer often mill again after receiving goods.
6. Smooth Chamfer.
7. Anti-Collision Connecting Box.
8. Slot around the side - for easy assembling to the machine table.
Features of Electro Permanent Magnetic Chuck:
1. Electric permanent magnet chuck only uses electric energy during the magnetization and demagnetization stages. No power is required during processing, and the workpiece is fixed by the magnetic force generated by the high-energy permanent magnet.
2. Comprising 50x50mm poles, and the suction force of each magnetic pole is about 350kg and 14-17kg/cm².
3. Magnetization or demagnetization time is 0.5-5 seconds.
4. Workpiece gripping at least 4 pole contact faces.
Advantages of Electro Permanent Magnetic Chuck EP50:
1. Wide Applicability and Flexibility:
Clamped by one-side, workpiece (uneven workpieces) can also be machined from 5 sides.
Moreover, low compact magnetic chuck design, but it's allowed larger workpieces dimension than magnetic chuck table face.
2. Consistency of magnetic force and high processing accuracy.
The table top has a large suction force of 14-17kg/cm²;
2 times suction strength that that ordinary magnetic chucks, absorbing all ordinary steels and mold steels well.
No thermal deformation, to effectively improve the processing accuracy.
3. Safety and energy saving:
No electrical energy is required during the processing. The magnetic force will not lose, if the power off suddenly. So the workpieces will fall off and break the CNC machines when processing. Effectively guarantee the safety of system and workers.
No power wasted at this magnetic chuck when workpieces processing;
4. Excellent Waterproof Performance:
Use waterproof and oil-proof connector, easy to plug and unplug. Not afraid of spraying oily or water-based liquids such as chip oil.
5. High efficiency:
convenient and quick installation, shorten production cycle and improve production efficiency 50% at least.
The stop blocks are allowed to move to any side on table.
Available to connect several magnetic chuck to a single controller.
6. Low cost:
The machine tool does not need to make any changes, reduces tool wear, and has no maintenance costs.
7. Warranty:
1-Year Quality Warranty, Components free replacement within Warranty Period for electromagnet repair, Shipping cost by Clients.
Application of Electro Permanent Magnetic Chuck EP50:
1. Used for both normal and heavy duty drilling, milling, and CNC machining center
2. workpiece dimension can be larger than the size of the suction cup.
3. Suitable for thinner and medium thickness workpieces, normal working air gap (The smallest size is 250X250x10mm).
4. Used for small, medium dimensions with normal operating air gaps and thinner workpieces.
Electro Permanent Magnetic Chuck for CNC Machine Center
Electro Permanent Magnetic Chuck for Milling:
Electro Permanent Magnetic Chuck for Drilling:
Electro Permanent Magnetic Chuck Customer Installation
Inspection of Electro Permanent Magnetic Chuck:
1. Slipping force Test
2. Waterproof Test
3. Temperature Rising Test
4. Electrical & Demagnetizing Tests
Pictures before Packing:
Inner Anti-rust Oil
Inner Packing:
Pictures After Packing:
For this magnetic chuck price, please contact us on email or Chat Now.

---
