Selflock EPS and Rock Wool Profile Continuous Polyurethane PU Foam Sandwich Wall Panel Cold Roll Forming Making Machine Production Line Price

Product Description

Product Description

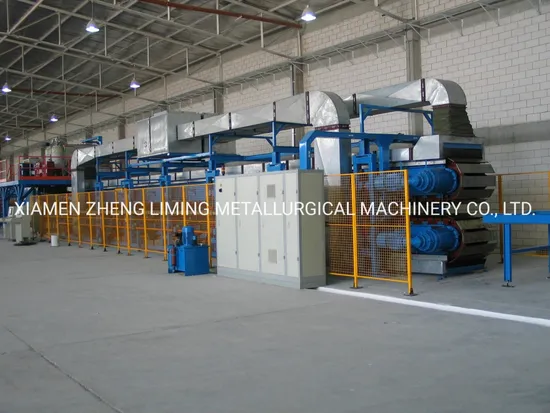

PLC Control Sandwich Panel Making Machine

1. The general machine parameter
Suitable roll forming material	Color steel sheet or galvanized steel sheet
Thickness	2.0-3.0mm
Frame design	Wall-plate-frame-design /Strong-stand-frame-design
Roll stages	17stages
Material of forming roller	1. 45# steel, CNC lathes, Hard Chrome Coated 2. 40Cr, heat treatment, nitrided treatment
Shafts Diameter	Φ75/95mm
Main motor power	18.5KWwith reducer
Max. Line speed of roll former	8-10m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power	22KW
Material of cutting blade	Cr12, hear treatment
Electric Standard	380V /50Hz/3PH or as the customer's requirements
Machine Dimensions	9840mm×2030mm×1130mm
Major Color of Machine Painted	RAL 5015 (Blue) or as per customer's requirements
2. PLC Control system
PLC	Siemens brand (ABB brand is available if required)
Touch Screen	Siemens brand (ABB brand is available if required)
Inverter	Schneider brand (ABB brand is available if required)
Encoder	Omron brand
3.Product rack
Description	un-powered, 4 meters length
Option: Pre-Level Device Hydraulic Punching & Cutting M/C CE certificate Pl refer to the attached pictures for details
4. Service after sell
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements. Installation: (1) If installation is needed, Liming (the seller) will dispatch technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation. (2) If installation is needed, the buyer shall make the following preparation before arrival of technicians. a) Position the machine in the buyer's factory. b) Prepare necessary electric wiring. c) Prepare material of trial running. d) Provide labors for assistance and installation during installation. e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller's technician will go smoothly.

Detailed Photos

FAQ

1. How to get the quotation?
1.Give me the profile drawing and thickness,this is the important.
1. Other specific requirements is welcome,such as the speed,power and voltage you want.
1. If you don't have your own profile drawing, we can recommend some model types according to your local market standard.
2.Do you have after sales support?
Yes, we are glad to support advice. Our technicians available across the world.
3. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend a lot of time and money in the research and development of equipment and material selection, so that our machine is more automated, more reliable and accurate, and has a higher service life. Our equipment can last for nearly 32 years, and we offer a two-year warranty.
4. What can we do if the machine broken?
The machine will be tested before shipment with coil, ensure everything is ready 2.We will prepare some spare parts along with the machine, ensure our customer can solve the issue in a shortest time.Both the sale person and technician can give you the service overseas and make training for the workers,the sale person can make translation, so that the installation and training will be more clear and easily.
