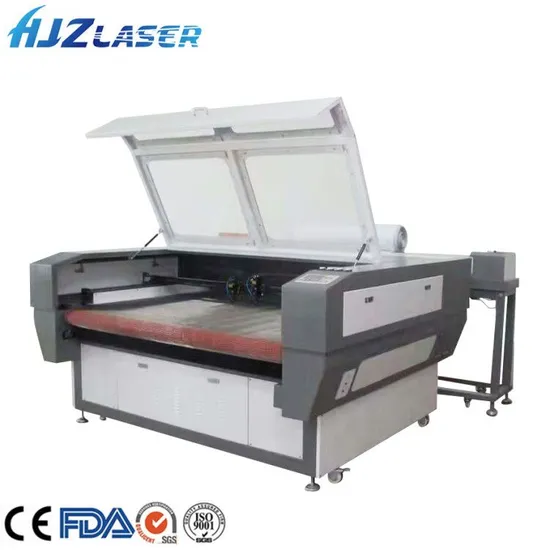

Wood Acrylic MDF Plywood Metal CO2 Laser Cutting Engraving Machine

US$2,800.00-3,800.00 1 Piece (MOQ)

Basic Info.

Model NO.

HJZ-co2-13090

Cooling System

Air Cooling

Technical Class

Pulse Laser

Applicable Material

Nonmetal

Structure Type

Gantry Type

Laser Classification

CO2 Laser

Laser Technology

CO2 Laser

Terms

Technical Parameters

Power

100W

Working Size

1300*900mm

Table

up & Down

Software

Rdcam

Package

Standard Crate for Export

Working Power

220V/50Hz/1.5kVA

Engraving Speed

1200mm/S

Process Material

Non-Metal Materials

Marking Varieties

Characters, Graphs, Images, Trademarks

Laser Source

CO2 Laser Tube

Lifespan

Over 20, 000 Hours

Water Chiller

Doluyo

Driving System

Panasonic

Transport Package

Standard Plywood Packing for Export

Specification

1650X1250X1050MM

Trademark

HJZ

Origin

China

HS Code

8456100010

Production Capacity

500/Month

Product Description

Wood Acrylic MDF Plywood Metal CO2 Laser Cutting Engraving Machine
1, Features:
1. To cater to larger material cutting in the co2 metal and nonmetal cutting industry, this machine adopts large and solid cast steel machine lathe, to make it more capable in material load-bearing, at the same time, let the machine operating stably during work.
2. With ball screw transmission on one side of it, this machine acquires high precision in metal cutting. Special up and down adjusting laser head, enables it processing well on uneven metal materials.
3. Imported Japanese servo motor, more powerful and stable compares with traditional china made servo motor, cooperating with the imported ball screw, this machine gets additional more precision and flexibility in cutting result than the ordinary model.
4. This machine can also be customized.

2, Details structure:
3, Technical parameters:

Model	HJZ-CO2-13250
Description	Wood Acrylic MDF Plywood Metal CO2 Laser Engraving Cutting machine
Working area	1300mm*2500mm
Laser power	150w/ 180w / 280W
Cutting speed	0-50mm
Reposition accuracy	±0.05mm
Working voltage	AC110-220V ±10% 50HZ-60HZ
Laser head	professional laser head with the auto height contorl
Graphic format supported	PLT,BMP,DXF,AI,CDR,DST
Software compatibility	CorelDraw ,PhotoShop,AutoCAD
Y axis transimassion	ball screw with square linear guide rail
Driving system	Panasonic or Yaskawa servo mators
Laser tube cooling type	CW5000/CW6000
Other auxiliary equipment	Exhaust fans and air exhaust pipe
Working temperature	0ºC-45ºC
Operating humidity	8%-95%(without condensed water)
Laser control system	DSP control system
Laser tube type	co2 glass laser tube

Thickness 180w for choice	speed
1mm stainless steel	1800mm/min
1.5mm stainless steel	1000-1200mm/min
1mm carbon steel	1800mm/min
1.5mm carbon steel	1000-1200mm/min
10mm arcylic	400mm/min
20mm arcylic	90-200mm/min
5mm MDF	1000mm/min
10mm MDF	300mm/min
18mm MDF	90-150mm/min

4, Samples and application:
5, Packing and shipping:
