Customized High Speed Super Mixer Machine for Sale

Product Description

Customized High Speed Super Mixer Machine For Sale Description :
This high speed vertical mixer can mix the powder raw materials add water into paste shape . It has following features: Mixed Uniform, there will no small particles and small blocks. Short mixing time , mix one batch 80-100kg powder only need 3-5 mintues . Feeding and discharge materials is very convenient, when feeding, just need put raw materials, small materials,and water into mixer together , then cover the lid, by setting the time to start mixing , when discharging , only open the cylinder or hand valve, So that the operation is simple and health, no need hand touch the raw materials . Simple to clean, just add water to the hopper, turn on the machine, and then release the water, it can be clean the machine . High-speed mixer sealing structure has been carefully designed, reliable sealing, easy disassembly repair, all gears after heat treatment, long service life.
Working Principle:
The high-speed mixer consists of a bottom feed paddle and a high-speed pulverized paddle. The bottom paddle let the materials continuously up the barrel wall. High-speed pulverized paddle will broken the materials completely, so that the material to form a spiral loop, in a short period of time to achieve the purpose of mixing the material evenly.

Main Structural features: As the role of centrifugal force, high-speed mixer bottom paddle feeding raw materials continuously upward along the barrel wall .the upper part of the material down from the center down, the material cycle to form a spiral. High-speed pulverized paddle can broken the materials completely. Mixing Uniform can be 100% . Open discharge valve, discharge materials quick , and easy to clean the device. High-speed mixer material contacts are made with stainless steel, in the mixing process does not produce volatile materials, deterioration and loss. Applications :
High-speed mixer is suitable for mixing different dry and wet materials. It is especially suitable for the mixing of spicy, Medicine granules, beverage granules and other complex mixed materials mixing, in other spices, pharmaceuticals, chemical raw materials powder mixture has been widely used.
Customized High Speed Super Mixer Machine For Sale Specification : Working volume: 350L Mixing per batch : ≤150kg Mixing one batch time : 3-5 min Mixing power: 11kw Cuting power: 2.2kw Machine list :

Item	Name	Model	Materials	Qty	Origin
1	Main Machine	GHJ-350	304 stainless steel /5mm	1 set	Changzhou , China
2	Gear reducer	GHJ-350	Q235-A	1 set	Changzhou, China
3	Cutter Motor	2.2 kw	Q235-A	1 set	Nanjing Motor
4	Mixer motor	11kw	Q235-A	1 set	Nanjing Motor
5	Mixing Blade	GHJ-350	304 Stainless Steel /16mm	1 set	Changzhou, China
6	Cuter Blade	GHJ-350	304 stainless steel /5mm	18 pcs	Changzhou, China
7	Transmission pulley	GHJ-350	Q235-A	2 pcs	Changzhou, China
8	Transmission belt	GHJ-350	High-quality belt	4 pcs	Jinxiang
9	Anti-Vibration pads	80	Rubber	4 pcs	China
10	Electric control	Centralized control		1 set	CHNT ,China

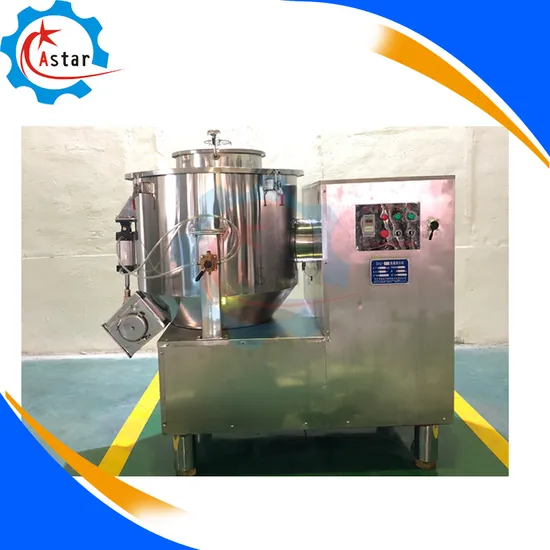

Customized High Speed Super Mixer Machine For Sale More Photos:
To know more Customized High Speed Super Mixer Machine For Sale, pls contact winni
Cell: 0086-15178920906

---
