Accurl Customized Plasma CNC Cutting Machine

Product Description

Accurl Customized Plasma CNC Cutting Machine
Product Description

CNC FLAME AND PLASMA CUTTING MACHINE
ACCURL® plasma cutting machine continues to provide wide and flexible solutions with its low investment and operation cost advantages, being appropriate to production lines and automation, improved accurate cutting quality. The CPL series will be profit center of your workshop by its minimum maintenance and consumable part costs and not losing the accuracy for many long years
Advantages+
* High cutting technology.* Minimum operating cost* EDGE® Connect System (Hypertherm/USA) * Arc Glide™ THC automatic height control system* HyDefinition® technology* PowerPierce™ technology* LongLife™ technology* HyPerformance® HPR-800XD® plasma source* TurboNest® nesting software.* The best choice for plasma with its high productivity and accurate cutting quality.

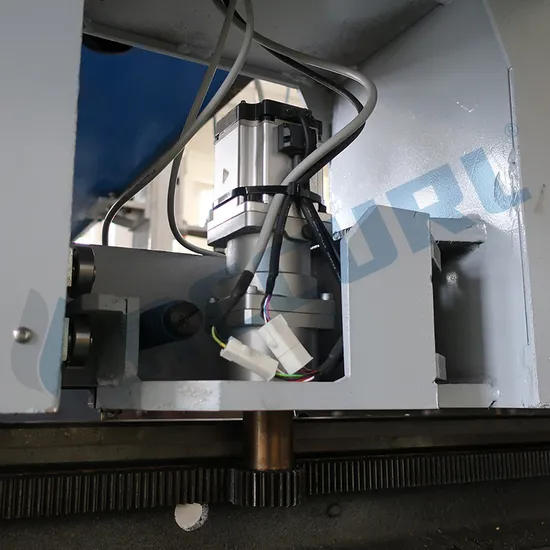

Detailed Photos
EPS Plasma 3 Axes Series
* It offers the optimum solution to all your needswith its advanced accurate cutting quality,production line and automation.Special plasma software and CNC controllerenables the operator to use the machine with ease.* Thermal cutting machinesseries are used in industrial enterprises in the procurement industry. Themachine can be used as an independent product with individual service, and aspart of the flow-mechanized lines with appropriate support.
FUME EXTRACTION SYSTEM(Optional)
* Used to eliminate dust, particles and harmful fumes generated during cutting. It is fully automatic dust collecting shake filter.
* Used for the collection of dust, particles and fumegenerated during cutting.
* Increased airflow by oval cartridge filters.
* Nanofiber Ultraweb Media to filter more efficiently than filters with standard cellulose / polyester blend media.
* Self cleaning
* DF PRO 9 ( 8000m3/h) or DF PRO 6 (8000m3/h) models can be used according to sizes of machines.
TBEVEL HEAD SYSTEM-IMA/ITALY(Optional)

Take -th 5e Axoiust Cuotft incgos Htlye ad (Optional) secondary operations such as grinding weld preparation with 5-axis Cutting Head.
This plasma cutting bevel system is capable of cutting all bevel preparation as bevel pipe hole,sharp bottom & top Blind bevel,cone bevel, V, X, Y and K bevel cuttings.
EDGE® NEW CONNECT CONTROLLER
Customized shape cutting control: This is the next generation of Hypertherm's industry leading automated control systems. It includes Hypertherm's embedded cutting expertise combined with cutting machine OEM customizability. EDGE Connect offers many new software features, enhanced hardware, and field based system configuration capabilities.

SureCut:
SureCut™ allows customers to maximize performance through embedded expertise. It is brought to you via various delivery mechanisms that include Hypertherm® CAM software, CNCs, and cutting systems.PLASMA SOURCE

SPECIFICATIONS FOR CNC PLASMA CUTTING MACHINE
No.	Name	Value	Unit
1	Table Width	1500	mm
2.	Length Table	3000	mm
3.	Under Torch Height	150	mm
4.	Width Machine	2350	mm
5.	Length Machine	4450	mm
6.	Height Machine	1750	mm
7.	Height Table	850	mm
8.	X Axis	1500	mm
9.	Y Axis	3000	mm
10.	Weight	3550	Kgs
11.	Max (X-Y)Positioning-speed	30	m/min
12	Total Power consumption(without Plasma system )	4	Kw
