Deyang K-Bos Model 4lz-4.0z Combine Harvester for Rapeseed

Product Description

Product Description
Deyang K-BOS Model 4LZ-4.0Z is for plain field, key words: compact structure, smooth operation, quick action, flexible adjustment, and high efficiency, this model has been experienced diffirent paddy condition diffirent field condition and different over 10 countries and over 5 years. It is of very mature and strong and reliable combine harvester.
Equipments:Four Cylinder diesel engine,Power range from 88HP to 100HP. 80 Gearbox, 42CC HST, 500mm Width Rubber, With Automatic Reverse Device for Conveying transmission, easy -maintenance
Multi-functional : Rice, Wheat, Soybean, Maize,Rapeseed, and other granular crops.
High Efficiency:Strong Power,High capacity. Theoretical harvest speed:0.4-0.6hectare/hour.
Adaptability: Ground clearance 310mm, with rubber track 450*90*51 and track guage 1150mm, Strengthened chassis with very strong sqaure tubes, offer this model super performance, walking and working fast and stable and flexible.

This machine is easy for operation and maintence, it is a safety and energy-saving machine.
Production plant passed and accredited to following items: ISO9001:2008, European Standard Certification CE, Bureau Veritas Certifcation BV, llAC-MRA CNAS Certification.
This machine is easy for operation and maintenance, it is a safety and energy-saving machine.

Overall Dimension	Length×Width×Heights ( mm ): 5100×2650×2400
Weight (kg)	3000
Feeding Capacity( kg/s )	4
Harvesting Capacity(hm²/h):	0.4-0.75
Engine	Engine Model: 498BT/BZT/L , 4C6-88M22 , 4D35ZT32/1004 (Alternative)
	Rated Power ( kw/hp ): 65/88, 55/75, 73.5/100 (Alternative)
	Engine Type: Water-Cooled, 4-Cylinder, DIInjection, Vertical Diesel. Turbocharged Engine.
	Rated Rotation Speed (r/min) : 2400
	Fuel Tank Capacity ( l ): 140
Driving System	Rubber Track(mm): 450 x 90 x 51, 500 x 90 x 54 (optional)
	Crawler Steering Radius ( mm ): left turn 2850; right turn 2850
	Minimum Ground Clearance (mm): 310
	Type of Gearbox: Hydraulic type + HST(3F, 3R)
	Theoretical Operating Speed ( km/h ): 2~4
	Type of Brake: By Foot.
	Steering: Clutch and Brake.
Cutting header	Pickup Reel: Type:Eccentric Tooth ( off-centre ); Diameter( mm ): 900; Nos: 5
	Height Adjustment: Hydaulics.
	Cutting Bar Length ( mm ): 2000, 2200
	Type of Header Auger: Telescopic Screw Conveying.
	Type of Blade: V Type / Left and Right.
	Rape Seed Extension: Optional
Threshing & Separating	Threshing System: Spiked Tooth Axial Flow
& Cleaning System	Threshing Cylinder Size Diameter × Length ( mm ): 626×2000
	Concave Sieve :Grid x 4
	Reshresher: Blade Rotation.
	Vibrating Sieve: Adjustable Sieve / Meshing Sieve / Hole seive (Optional)
	Fan: Type: Swirl; Diameter( mm ): 405; Nos: 4
Grain Storing	Option 1: Grain Tank with 360 Unloading Auger, Capacity ( L ): 1500
	Option 2: Grain Tank with 90 Unloading Pipe. Capacity (L): 1500
	Option 3: Small Grain Tank: Manual Operation.

Detailed Photos

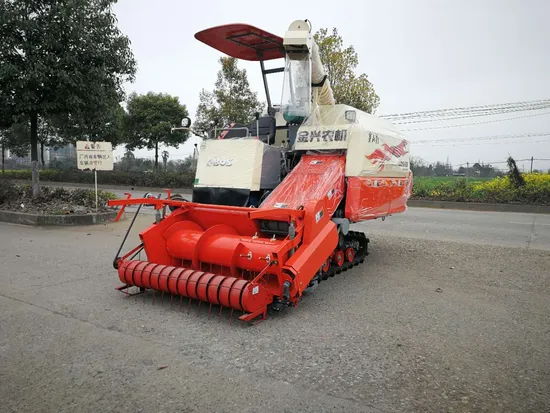

Details for Model 4LZ-4.0Z:
Working in Field Pictures for Model 4LZ-4.0Z:
