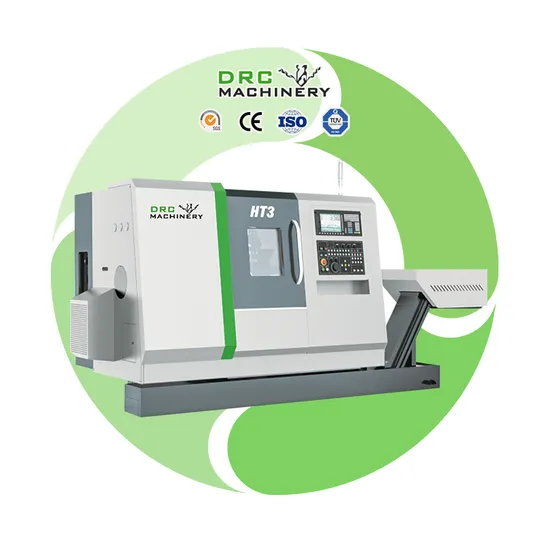

High Quality Ht3 Oblique Bed CNC Lathe

Product Description

High-Precision Slant Bed Turret Small CNC Turning Center 3-axis Lathe Machine With 12-station Power Turret For Metalworking
IHT series Tuning Lathe machine with FANUC control system, Included Standard Equipment and Standard Control System Functions. Integrally molded low center of gravity casting bed, 30 ° saddle through optimized design, It has a large shock damping and a smaller amount of deformation, the main axle box, turret. Providing high-rigidity structure basis. 30 ° slant bed design to facilitate the operator upper and lower parts, but also to ensure. Smooth chip evacuation.
( More Detailed Picture of IHT series CNC Lathe Machine )
Small CNC turning and milling turret lathe machine with C axis live tool
1.Super Rigidity Lathe
The Lathe machine structure is integrated into a strong base,lower barycenter, 30° saddle desigh to achieve better vibration damping and reduce deformation, providing headstock & turret with a very stable base.30° slant bed structure, more convenient for bar loading& unloading, smoother for chip removal.
2.Modern Popular Control Packages Lathe
iHT series Lathe have optional FAUNC 0iTF control package &Siemens 828D control package, 8.4' display, 10.4' display,extra interfaces etc. ready for customers.
3.Super Cost Performance Lathe
German lineage iHT Series Lathe boast best components, such as SAUTER turret, NSK bearings etc. to gurantee the high precision performance. Meanwhile we offer competitive price to make iHT series super high cost performance.
4.User-friendly Design Lathe
Minimal space occupation but mostly compliant to the actual work area, full protective enclosure with human aesthetic design, stainless telescopes cover, provide safe & clean working environment and better durability.
5.Abundant Options Lathe
Electric turret, servo turret, powered turret, upgrade spindle power, upgrade spindle torque, upgrade bore of cylinder & chuck, drawer type coolant tank, tool probe, oil-mist seperator etc. options ready for customers.
6.iHT Series technology:
High stability and perfect machining results thanks to the integrally molded massive HT300 cast iron bed.
The bigger spindle bearings and the appropriate wide spacing between the guideway ensure that iHT series machines by high accuracy and rigidity.
Slot disk, vDl disk, BMT disk, electric turret, servo turret, servo-driven turret all can choose by the customer.
Hydraulic controlled tailstock, servo tailstock all can choose.
Inner housing made by the stainless steel which can avoid to rust.
Hollow chuck as standard (Closed center chuck optional)
Traversable steady rest (HT10 optional
Product Parameters

Machine Parameters	IHT316S
Spindle head: FL 140 h5	Max. Torque: 112 N/M
Spindle maximum speed: 6000 rpm	FANUC Spindle power:7.5/11KW
Spindle bore: 74mm	Chuck diameter: 165mm
Front bearing diameter: 100mm	Speed range: 5-6000rpm
Maximum swing over bed: 558mm	Center distance: 608mm
Maximum cutting diameter: 328mm	Maximum cutting length: 310mm
Maximum bar capacity: 42mm	Travel Z: 380mm
X/Z axis ballscrew D/P: Oct-32mm	Travel X: 180mm
Rapid traverse Z/X: 30/30m/min	Feed force X/Z: 4500N/M
X/Z axis measuring system: Absolute rotative	Number of axies: 2
VDI/DGQ 3441 Positioning (X / Z): 0.008/0.008mm	VDI/DGQ 3441 Repeatability (X / Z): 0.004/0.005mm
No. of tool stations Driven tools: 12	Power turret: SAUTER
Tool attachment: VDI 30	OD tool size: 20 mm
Driven tool holder type: 30 / W16/0,8/30/18 DIN 5480 VDI
Maximum clamping force: 3000 N	Maximum speed: 3000 rpm
Driven power: 3 KW	FANUC Torque: 20 N/M
Frequency: 50 ± 1% Hz	Voltage: 380 ±10% V
Max. installed power: 25 KVA	400v lie protection fuses: 50A
Connection cables section: 4/10 mm2	Max. working pressure: 55bar
Reservoir capacity: 35 l	Pump flow: 24 I/ min
Pump delivery: 30 l /min	Capacity with tank: 100 l
Pump pressure : 5 bar	Less than: ≤80 dB (A)
FANUC Control system :0iTF	Slant angle, Material:45°, HT300
Net weight :3200 kg	Floor Space Requirement- with conveyor : 3600/1850/1800 mm

---
