Plastic PA66/Polyamide GF25 Pet/PP Strap Thermal Break/Bar Extruder/ Insulation Strip/Tape Packing Belt/ Band/ Extrusion Production Line Making Machine

Product Description

Plastic PA66/Polyamide GF25 Pet/PP Strap Thermal Break/Bar Extruder/ Insulation Strip/Tape Packing Belt/ Band/ Extrusion Production Line Making Machine Detailed Photos

Product Description
Product Description Of polyamide 66 Thermal Break Strip Extrusion Machine
PP belt machine
PP strap machine
The utility model mainly uses the special screw to make the polyamide nylon 66 and the glass fiber obtain good plasticization, and the extrusion die/tool extruded into a thermal insulating strip, which is widely applied to the doors, windows and curtain wall aluminum sheets through the different sections of the die.
PA66+GF pellets after drying machine into the hopper into the barrel, screw and pellets contact with the rotation of the screw forced to promote the spiral groove die direction. Because the screw barrel gap is small, the granular material is hot body under great pressure in the forward process; the temperature of the electric heating ring body is plasticizing nylon thermosol. Nylon plastic and plastic compression heating hot melt by extrusion molding, after traction, cutting or rolling process and become adiabatic adhesive tape products.

Product Application PP BELT MAKING MACHINE Automatic extruding machine is for polyamide thermal break strips used in aliminun windows and doors. Many customer use thermal break aluminum profile to do big air conditioner to keep heat of cold air, then make use of energy saving. We provide quality extruder machine along with various molds and raw material-nylon granules, and also the subsequent technical assistance. This machine includes raw material auto loading device, heating system, thermal break strip extruder and strip drawing device.
the complete line includes : auto loader , hopper dryer ,extruder ,mould . bracket
Why use polyamide 66 strip as thermal barrier function?
1. Because polyamide strip including Polyamide and glass fiber, Its Strength can reach requirement for aluminum profile window, door, curtain and walls.
2. Conductivity of polyamide strip is very low, prohibit hot air or cold air transferred from outside to inside, energy saving product.
Polyamide strip transforms aluminium window profiles into outstanding insulators
"Wear a process" heat insulation material - the current domestic thermal insulation strip is polyamide 66+GF25 (Polyamide66, commonly known as nylon 66+25% glass fiber)
1. main materials PA66+GF
2. density (g/cm3) 1.3
3. tensile strength (N/mm2 = 110)
4 .elastic modulus (N/mm2) 900
5 .thermal conductivity (W/m2.k) 0.3
6 .hot deformation temperature (ºC) 250
Product Parameters

PA66GF25 Polyamide nylon Strips Extrusion Making machine including:

1, Raw material loading device(automatic)

2, Raw material drying device

3, Main thermal break strip extruder

4, Polyamide strip moulds / tools

5, Multiple polyamide strip collector

6, Control cabinet

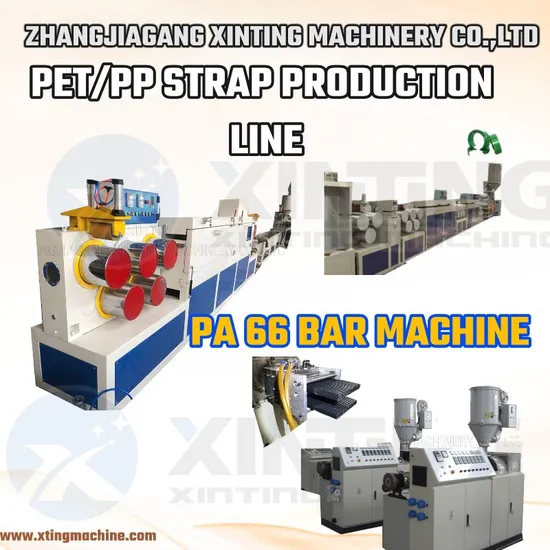

We can offer the PET PP STRAP MAKING MACHINE
PET PP STRAP MAKING MACHINE
PET PP MATERIAL strap is recognized a new environment protective strapping material to substitute for Steel Strap &PP Strap in the ruling international market.
They are not only the aggregation of the intensity and the tenacity of steel strap, but also overcome the disadvantage of the tradition packing material such as insufficient intensity, brittle and so on. At present, they have been applied in wood, steel, and so on.
Our company this line adopt the PLC control the whole line do the automatic production. It use the melting pump and pressure sensor ensure the production stable and strap quality control.
The raw material you can use 100% recycled PET flakes from the waste PET bottles, or virgin material or mixed with each other.

---
