Jieda PS800 Model Flat Plate Top Discharge Variable Speed Centrifuge

Product Description

Jieda PS800 Model Flat Plate Top Discharge Variable Speed Centrifuge

Product introduction of PS800 Model Flat Plate Variable Speed Centrifuge:
This PS800 model Variable Speed Centrifuge is upper discharge and intermittent operation type centrifuge. Material is feeded into the drum from the upper, with the centrifugal force, liquid is discharged out of he machine through the filter bag, and solids retained in the filter bag. After the drum stops, then to discharge the solids.
Main Features of PS800 Model Flat Plate Variable Speed Centrifuge:
1. Frequency converter starting, stable starting, adjustable separation factor
2. Artificial upper discharge.
3. The reasonable structure design effectively eliminates dead corner of sanitation. The structural parts adopt smooth transition and the surfaces are subjected to polishing treatment. The external structural parts, fasteners and bowl are all made of stainless steel. The housing adopts flap type cover, so that the space between the housing and bowl can be cleaned thoroughly.
4. It is equipped with the spray cleaning system to carry out CIP cleaning of the centrifuge, including cleaning of inner walls of the housing, interior and exterior surfaces of the bowl, surfaces of the liquid collector and other invisible parts inside the centrifuge.
5. It complies with the requirements in the GMP standard.
6. Simples structure, convenient operation
7. The grains are not easy to break.
8. It is equipped with the nitrogen protection system to ensure air isolation between the inside cavity and the outside of the centrifuge.
9. Good versatility and wide application range
10. Closed structure. The seal is made of silicone rubber or fluorine rubber to meet the requirements of sealing and anti-explosion. It is suitable for poisonous, inflammable and explosive applications.
Application Scope of PS800 Model Flat Plate Variable Speed Centrifuge:
It is especially applicable to the filtering of toxic and flammable materials. It has found wide applications in such trades as chemical, pharmacy, food, light industry, etc.
For example: Gypsum, thiamine, mirabilite, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additives, dye, plastic raw material, soap, grease, all kinds of resins, food salt, sodium glutamate, food additives, starch sugar-making, vitamins, antibiotics, herbicide, insecticide, the dehydration of such mineral fines as copper, zinc, aluminum, etc.
Main Technical Parameters of PS800 Model Flat Plate Variable Speed Centrifuge:

Model	Drum					Separation Factor(ω²r/g)	Motor Power(KW)	Weight(KG)	Dimensions(mm)
	Diameter(mm)	Wall Thickness(mm)	Volume(L)	Loading Limit(KG)	Speed(r/min)
PS200	200	3	1.5	2	2020	454	0.55	230	520*300*300
PS300	300	4	5	10	2000	670	0.75	240	850*650*655
PS450	450	5	20	30	1900	910	1.5	380	980*650*740
PS600	600	6	40	60	1500	755	3	1100	1300*1000*1050
PS800	800	8	100	135	1200/1500	645/1006	5.5/7.5	1500	1800*1300*1200
PS1000	1000	8	140	200	1000/1200	560/806	7.5/11	2200	2000*1400*1220
PS1200	1200	10	240	325	800	430	11	3000	2300*1700*1200
PS1250	1250	12	380	530	960/1050	645/770	18.5/22	3500	2300*1700*1450
PSF300	300	4	5	10	1500	380	0.75	200	650*650*750
PSF450	450	5	20	30	1500	566	3	380	800*800*850
PSF600	600	6	40	60	1500	755	3	900	900*900*1050
PSF800	800	8	100	135	1500	1000	7.5	1350	1220*1220*1210
PSF1000	1000	8	140	200	1000	560	11	2200	1400*1400*1350
PSF1200	1200	10	240	325	960	620	15	2500	1700*1799*1215

Drawing of PS800 Model Flat Plate Variable Speed Centrifuge:
1. Machine base
2. Bowl part
3. Bearing block
4. Housing
5. Washing pipe
6. Machine cover
7. Oblique sight glass
8. Explosion-proof lamp
9. Feeding pipe
10. Flap turning device
11. Motor
12. Vibration absorber
13. Liquid discharging pipe

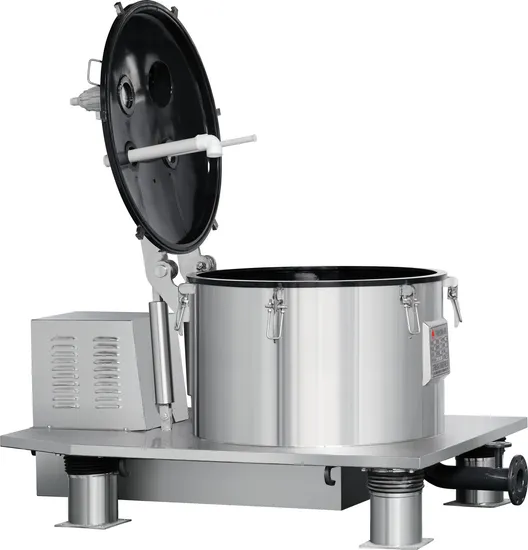

Photos of PS800 Model Flat Plate Variable Speed Centrifuge:
Company Profile:
Founded in 2001, Jieda Centrifuge specializes in technical research and development, project design, equipment manufacturing, product sale and application services in the filtering and separating fields. Our company is a National High-tech Enterprise, a Private Technology-oriented Enterprise in Jiangsu Province, a member of Separating Machinery Division of China General Machinery Industry Association, a member of National Filtering Professional Technical Association, and a member of China Association for Pharmaceutical Equipment.
With a wide variety of products, we focus on providing whole-course services and offering overall filtering and separating solutions for such industries as medicine, chemical industry, food, environmental protection and metallurgy. With complete manufacturing equipment and advanced management concepts, our company has been certified to the ISO9001 international quality system and GMP. Our products have been underwritten by PICC P&C. While focusing on technical innovation, our company has cooperated with Jiangsu University of Science and Technology to establish the postgraduate work station and build the centrifuge separating technology research center, continuously climbing high peaks in the centrifugal separation field.
Constant pursuit of perfection will surely create distinguished products and accomplish prominent quality. With higher passion, more extraordinary belief, as well as excellent products and services, Jieda personnel will realize future prosperity and dreams.
Certificates of Flat Plate Variable Speed Centrifuge:
Our Centrifuge Workshop:
Jieda has high-precision CNC machining tools and machining centers, advanced production equipment, fine technique and strict and perfect quality management system, and moreover, we gather professional elites and science and technology team with leading level, so as to make full use of new technologies, new techniques and new materials to guarantee stability and reliability of products. Our product quality originates from advanced manufacturing means, and the concept of fine products stems from continuous innovation.
Why Choose Us:
1. Professional team for you selecting suitable Centrifuge and give you best after-sale service
2. Good quanlity for the Centrifuge running stably
3. Reasonable Price & Fast Delivery
