US$15,000.00-30,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
XK7124 XK7136 XH7145A XK7145 XHS7145
Type
Worktable Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Automatic Grade
Automatic
Certification
CE, RoHS, ISO 9001
Transport Package
Plywood Case
Specification
1200x1500x2100mm
Production Capacity
50 PCS/Month
Product Description

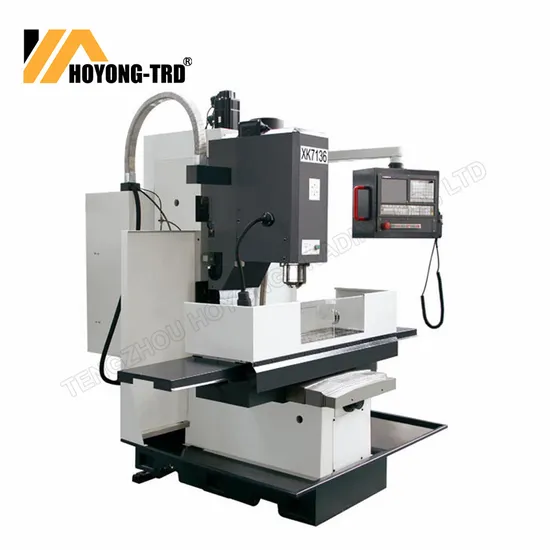

CNC MILLING MACHINE FEATURES:
High-speed spindle unit from Taiwan,
The frequency stepless speed regulation
Suit for Small parts of the high-precision,
Highly efficient automatic processing
Fanuc 0i mate, GSK-928mA/983M or KND-100Mi/1000MA CNC system
SPECIFICATOINS:
| SPECIFICATION | XK7136 /XK7136C |
| Main motor power | 5.5kw |
| Highest spindle speed | 8000rpm |
| X/Y/Z to the motor torque | 7.7/7.7/7.7 |
| The spindle taper hole | BT40 |
| Table size | 1250x360mm |
| X/Y/Z axis travel | 900x400x500mm |
| Distance between spindle center and surface column | 460mm |
| The distance of spindle end face to the workbench | 100-600mm |
| Rapid movement(X/Y/Z) | 5/5/6m/min |
| T-slot | 3/18/80 |
| Table load | 300kgs |
| Positioning accuracy | 0.02mm |
| Repeat positing accuracy | 0.01mm |
| Machine tool appearance size(L x W x H) | 2200x1850x2350mm |
| Net Weight | 2200kgs |
>>
