Taber Stiffness Tester Bend Stiffness Testing Machine for Measurement Paper Bending Resistance

Product Details

Product Description

Product Description

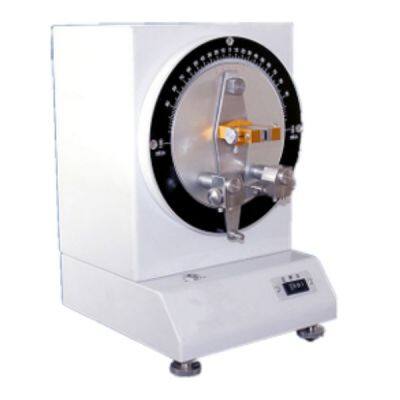

WTD-02 Taber Stiffness Tester
Application
WTD-02 Taber Stiffness Tester is used to measure the bending resistance of paper and paperboard by the Taber-type tester.
The method is primarily used for papers with a high grammage. In the test, the bending moment required to deflect the free end of a 38 mm wide vertically clamped specimen by 15° when the load is applied at a bending length of 50 mm, is obtained. For boards that tend to be permanently deformed if bent through 15°, the half bending angle 7.5°, can be used.
The bending resistance is expressed in terms of the bending moment and is expressed in millinewton meters mN·m.
Test Principle
A test piece of defined dimensions is bent through a specified bending angle. The resulting bending moment is read from the instrument scale.
Standards
ASTM D5342，ASTM D5650，ASTM D3301， BS ISO 2493.2，ISO 2493.2, JIS P8125.2，TAPPI T489，TAPPI T566, GB/T 2679.3, GB/T 22364
Main Parameters
Indication error ±2%
Bending length 50mm±0.1mm
Testing speed （200°±20°）/min
bending angle 15°±0.3° and 7.5°±0.3°
Sample size 38*70 mm
Dimension 220*230*350mm
Net weight 15kg
Power AC 220V 50Hz

---
