High Speed Machinery Building Material Galvanized Metal Slat Steel Roller Rolling up Shutter Door Profile Roof Tile Panel Sheet Cold Roll Forming Making Machine

Product Description

Dixin High Speed Machinery Building Material Galvanize Metal Slat Steel Roller Rolling Up Shutter Door Panel Sheet Cold Roll Forming Making Machine

Production Information

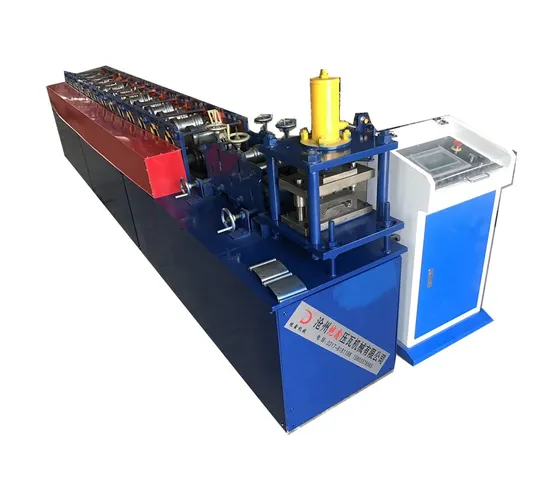

Shutter Door Roll Forming Machine
The roller shutter door is a multi-joint movement of the door piece in series together, in the fixed slide, with the upper part of the door scroll as the center of rotation up and down the door. Roll shutter door is usually widely used in shops, garages, and industrial buildings.

Other designs
We conduct strict quality control throughout the entire production process. All of our rolling door forming machines are manufactured to a consistently high quality. Please contact us for more information on roller shutter door machine prices and specifications.
Application
Rolling shutter door has the effect of level space like the wall, it by curtain board, seat board, guideway, support, reel, box body, control box, roll door machine, limiter, door lintel, manual speed release close device, button switch, and insurance device many parts are composed, general installation is in the place that inconvenience build wall.


The roller shutter door is a multi-joint movement of the door piece in series together, in the fixed slide, with the upper part of the door scroll as the center of rotation up and down the door. Roll shutter door is usually widely used in shops, garages, and industrial buildings.

Working Flow

No	Item		Specification
1	Product name		Shutter Door Roll Forming Machine
2	Raw material	Material	PPGI GI
		Feeding width	As drawing
		Thickness	0.3-0.8mm
3	Decoiler	Operate	Hydraulic
		Weight capacity	5ton
4	Main forming machine	Roller station	18
		Diameter of shaft	80mm
		Roller material	High grade 45# steel
		Frame	Steel plate welder
		Cutting material	Cr 12
		Operation	Automatic cutting
		Working speed	15-20m/min
5	Power	Driving way	chain/Hydraulic
		Main motor	7.5kw
		Voltage	380V 50hz
6	Control system	Electric box	PLC control system
		PLC brand	DELTA

Recommended Production

Our company has been dedicated to foreign trade for many years. We can provide customized production equipment for various models of GI, GL, tinplate, metal carved board production line, metal fence roll forming machine machines,roof and wall panel roll forming machine and so on. They all are of excellent quality, aesthetically designed, and easy to use automation. If you need, please inquiry or purchase in advance. We can provide you with competitive prices.
We can produce various types: we can also design machines according to customer requirements, and you can send us your panel drawings.

Company Information

Since its establishment, Cangzhou Dixin Pressing Tile Machinery Co., Ltd. has been dedicated to the research and manufacturing of metal plate cold bending roller forming equipment. It now has a unique management model and product development capabilities, ranking at the leading level in the industry. Our company's products are highly favored by users due to their lightweight structure, reasonable design, and continuous updates.
Our company is located in Botou City, a famous casting city in China, in the Bohai Economic Circle. It is bordered to the north by Beijing Tianjin and to the east by Bohai Sea. National highways 104 and 106, the Beijing Shanghai Railway, and the Beijing Fuzhou Expressway run through the city, providing convenient transportation and superior location.

Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.
Warmly welcome to China to visit our factory and select the machines you need. Our address, Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China

FAQ

Contact me

Hope to cooperate with you!

---
