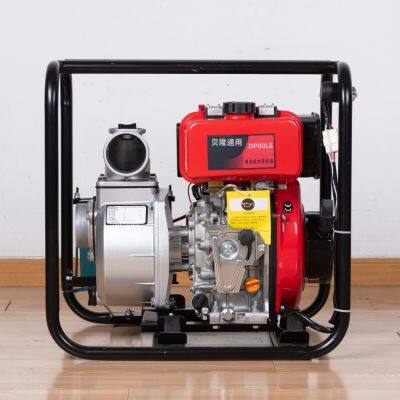

| Model | DP80LE |
| Inlet and Outlet Diameter[mm] | 80/3" |
| Flow [m³/h] | 55 |
| Lift [M] | 27 |
| Self-priming Time[s/4m] | 150 |
| Maximum Suction[M] | 7 |
| Fuel Tank Capacity[L] | Small tank: 3.5L |
| Engine Model | 178F/E |
| Start Method | Hand start Electric start |
| Engine Type | single cylinder、4 stroke、air-cooled、vertical |
| Bore*Stroke[mm] | 78*62 |
| Displacement[L] | 0.296 |
| Compression Ratio | 19.5:1 |
| Speed[rpm] | 3600 |
| Power [Kw] | 4 |
| Oil Tank Capacity[L] | 1.1 |
| Fuel No. | Diesel: 0#(Summer), -10#(Winter) |
| Oil No. | SAE10W30 (CD grade or above) |
| Size [mm] (L*W*H) | ST560*455*550/BT560*455*655 |
| Packing Size[mm] (L*W*H) | ST580*475*570/BT580*475*675 |
| Net Weight/Gross Weight[Kg] | ST60/63/BT63/66 |
