| Model | Capacity (kg) | Break load (kg) | size(mm) | N.W kg | Dimension L*W*H(cm) | |||
| L | B | H | R | |||||
| PML-100 | 100 | 250 | 90 | 63 | 68 | 145 | 3 | 25*16*16 |
| PML-400 | 400 | 1000 | 160 | 95 | 180 | 160 | 11 | 32*20*17 |
| PML-600 | 600 | 1500 | 220 | 115 | 125 | 230 | 20 | 37*23*21 |
| PML-1000 | 1000 | 2500 | 260 | 145 | 145 | 280 | 35 | 43*28*24 |
| PML-1500 | 1500 | 3750 | 310 | 145 | 145 | 280 | 48 | 44*23*24 |
| PML-2000 | 2000 | 5000 | 340 | 160 | 165 | 410 | 65 | 52*30*31 |
| PML-3000 | 3000 | 7500 | 420 | 185 | 185 | 510 | 90 | 60*30*31 |
| PML-5000 | 5000 | 12500 | 580 | 300 | 300 | 650 | 190 | 73*40*48 |
| Before the packing, the lifting magnet must be checked by our inspection systerm. And the Magnetic Lifter must be made sure that it could lift the steel plate of full load. If not, that piece would not be passed. |

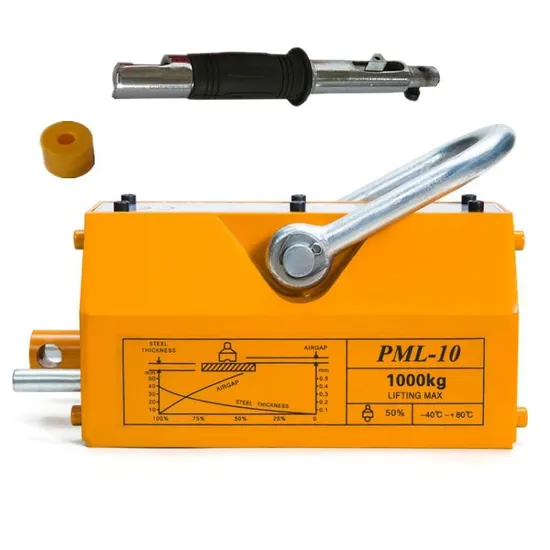

| 1.Nd-Fe-B Magnet as core component,smaller size,stronger lifting force and lasting magnetic force. 2. High safety factor up to 2.5 times pulling-out force than rated lifting. 3. V style design at the bottom of lifter,can lift opposite round steel or steel board. 4. Easy to use and free to power. 5. Optimized magnetic circuit design makes residual magnetism almost zero. 6. Professional appearance design makes product more attractive. Magnet lifter material: NdFeB Magnet, Neodymium Magnet, Permanent Magnet, Rare-earth Magnet. 7. Lifting weight:100kg,400kg,600kg,1000kg,1500kg, 2000kg,3000kg, and 5000kg. 8. Pulling-out force:2.5 times. |
| 1. Packing: Wooden case and Pallet 2. MOQ:1 piece 3. Payment: 30% TT in advance 4. Lead time: 1 week 5. Delivery time: 1 month 6. Load Port: Tianjin |
| Hebei Juying Hoisting Machiney Co.,Ltd was founded in 2005, and mainly produce chain hoist, electric hoist, mini electric hoist, hoist, lifting chain, lifting sling, lifting machinery equipment. The company has a complete and scientific quality management system. Relately it has been vertified by TÜV Rheinland. |
