3 Phase Oil Decanter Centrifuge

Product Description

How to separater waste oil from oilly sludge

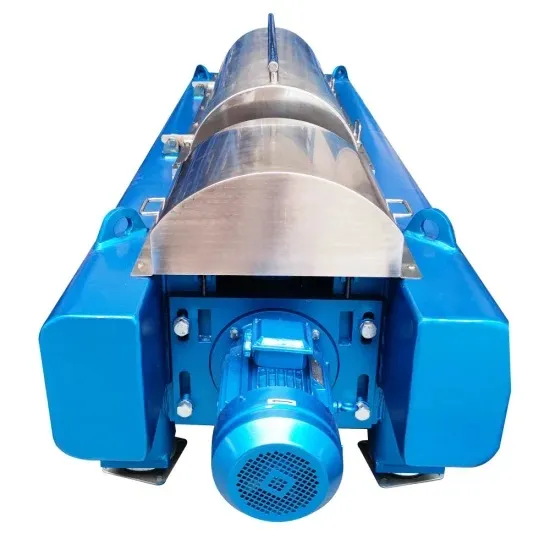

(LWS520 Waste Oil Centrifuge) The LWS horizontal screw centrifuge is a new type of Three-phase horizontal screw centrifuge mainly suitable for three phase separation (oil- water- solid ) of separation plant . It is mainly used in waste motor oil separation; oil sludge treatment, crude oil separation,
Current status Currently, there are various types of waste oils, including used motor oil, hydraulic oil, cooking oil, industrial lubricants. Improper disposal or release of waste oils contaminate water bodies, soil, and adversely affect ecosystems. Moreover, waste oils pose health risks to both humans and wildlife. Decanter centrifuges provide a solution for reusing waste oils. This technology enables the separation of oil-water mixtures by utilizing centrifugal force. Decanter centrifuges can effectively separate oil from water and solid impurities. the recovered oil can be further processed and reused. This not only helps in reducing pollution and conserving resources but also provides economic benefits by reducing the need for new oil production. #waste oil centrifuge for sale#centrifuge for cleaning waste oil;#centrifuge for waste oil;#waste vegetable oil centrifuge;#industrial waste oil centrifuge;#centrifuge waste oil
What is a Decanter Centrifuge
The horizontal spiral centrifuge, also known as a horizontal screw centrifuge, is a type of centrifuge that utilizes a rotating screw conveyor mechanism to separate solid particles or liquid-liquid mixtures based on their density. The centrifuge operates by subjecting the mixture to high centrifugal force, causing the denser components to move towards the outer edge of centrifuge while the lighter components stay towards the center. It consists of a column cone, spiral discharge device, differential system, bearing seat, base, cover, main and auxiliary motors,and electrical system. It is capable of separating materials ranging from 0.002 to 5um. This tricanter centrifuge is commonly used in various industries such as chemical, pharmaceutical, food processing, and wastewater treatment. It offers advantages such as 24 hours continuous operation, high separation efficiency, and the ability to handle large volumes of feed material. Horizontal spiral centrifuges are particularly effective separating fine particles or emulsions with a narrow density difference. The LWS520 centrifuge allows for adjustable parameters to optimize the separation process. Parameters such as rotation speed, differential speed, and liquid level can be adjusted to suit the specific characteristics of the oil being processed. Fine-tuning these parameters improves the separation efficiency and product quality. How Does Decanter Centrifuge Works
2 phase Centrifuge working principle:
After entering into the high-speed turning drum, the solid-phase particles in the mixed liquid run and settle on the drum wallunder the action of greatest centrifugal force; the light liquid settles at the innermost place of the drum under minimum centrifugal force; same as the drum's turning direction, a screw feeder also turns at a high speed, and a constant speed difference is generated by the differential mechanism, then the liquid will be discharged by the liquid outlet.(solid-liquid separation)
3 phase Centrifuge working principle Three-phase centrifuge is that two liquid phases and one solid phase enter the centrifuge and expand it thousands of times by relying on the centrifugal force field. The solid phase is settled under the action of centrifugal force, and the two liquid phases are also stratified, so as to realize Solid-liquid-liquid 3-phase separation and discharge them from the body under the action of special mechanism. The whole feeding and separation process is continuous, closed and automatic. (solid-liqui-liquid separation) PRODUCT SPECIFICATIONS
Product Parameters

Model	Diameter (mm)	Max. Speed (rpm)	Separation Factor	Capacity (M3/H)	Power (kw)	Weight (kg)	Overall Size (mm)
LW250×1000	250	5400	4080	2-10	11-15	1000	2600×760×1115
LW300×700	250	4600	3553	2-10	11-15	1120	2335×814×1170
LW300×1000	300	4600	3553	2-10	11-18.5	1380	2635×814×1170
LW350×1000	350	4200	3450	2-18	15-30	1950	2712×872×1244
LW350×1320	350	4200	3450	3-22	22-30	2200	3012×872×1244
LW350×1550	350	4200	3450	2-18	15-30	1950	2800×1380×850
LW430×1320	430	4000	3845	4-28	22-37	2500	3120×940×1320
LW430×1600	430	4000	3845	4-28	22-37	2500	3000×1500×1000
LW430×1800	430	4000	3845	4-28	22-37	2950	3600×940×1320
LW480×1800	480	3650	3580	6-35	37-45	4550	3650×1010×1396
LW480×2000	480	3650	3580	8-40	45-55	5050	3850×1010×1396
LW500×2000	500	3500	3423	8-40	45-55	5800	4150×1380×1558
LW530×2120	530	3500	3630	10-50	45-75	7200	4270×1380×1558
LW530×2200	530	3500	3630	10-50	45-75	7200	3800×2350×1200
LW580×2120	580	3000	29180	12-55	55-75	7800	4290×1450×1638
LW650×2400	650	2800	29180	15-60	75-90	8300	4330×1560×1768

Application
Shenzhou LWS 520 Waste Oil Decanter Centrifuge : High G Force up to max 3000. Big Volume Design. Bowl Material Duplex Stainless Steel 2205 made from centrifugal casting. Conveyor Wear Surface: Tungsten carbide tiles .The life is much longer than hard surface. And all tiles is interchangeable for easy maintenance. Preasurized Explosiong Proof with PLC and HMI control for automatical operation. All the bearings for the centrifuge are S-KF brand premium bearings. Shenzhou LWS 520 Centrifuge for Drilling Waste Management: The drilling fluids recovered by the drilling cuttings dryer should go through the GNLW363 decanter centrifuge to reduce the solids content before returning to the active mud system. The LWS three phase decanter centrifuge can be used in WBM, SBM or OBM. LWS 520 Dewatering Centrifuge for water based drilling waste: The result is a polymer enhanced flocculation of colloidal and ultra-fine drilled solids that can be efficiently removed with LWS decanter dewatering centrifuge. Without such a system, operators, would be left with the accumulation of colloidal and ultrafine drilled solids in the mud system. Ultimately leading to excessive mud densities, pipe torque/drag, mud loss, disposal fees, and overall well cost. Shenzhou LWS 520 Centrifuge for Oil Sludge Treatment: The design of the centrifuge on the telescopic skid is popular for oil sludge separation, and waste management rental business. The telescopic skid height is adjustable, It allows the liquid discharged from the centrifuge goes to storage tank by gravity without a transfer pump.
Features
* Adjustable bowl speed via VFD
* Highest g-force for higher solids output
* Approximately 80 to 90 % of the oil is recovered.
* Belts for both primary motor and secondary motor
* Automatic adjustment of differential speed via VFD
* Low personnel costs due to continuous and automatic operation.
* 3-phase AC motor for controlled torque starting via frequency converter
* All parts coming into contact with the product are made of stainless steel.
* Differential with high precision, compact structure, smooth operation.
* Main bearing of imported bearings, to ensure the accuracy of the operation.
* The machine is equipped with a variety of safety overload protection devices, to make sure safety in production.
* The machine system has two types, regular and explosion proof, to meet the different requirement.
* Large length to diameter ratio, high speed, many angels of drum cone structure
* Spiral pusher surface adopts hard alloy materials, against abrasion powerfully
* According to the customer's desire, the frame can develop to low center of gravity, high bracket and move.
* Spiral structure with BD board is used for the concentration dehydration of activated sludge and difficult separate materials Successful Project
Material Choice According to users' requirement,the product contact parts can be made of austenite stainless steel (321,316L...904L,C2205),Haynes alloy titanic alloy or other anti-erosion materials

---
