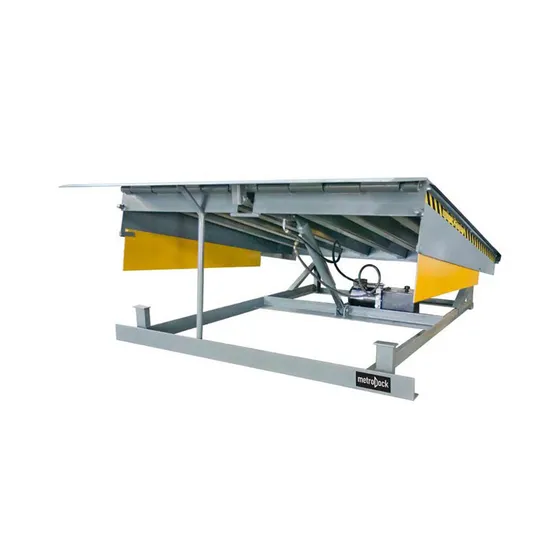

Hydraulic Loading Dock Leveler Edge Dock Leveler for Warehouse

Product Description

Hydraulic loading dock leveler edge dock leveler for warehouse
Dock leveler are efficiently used for handing heavy loads and it also with comprehensive safety configuration. When activated, the leveler is lifted and the lip opens while turning. Next, the platform is lowered until it reaches the floor of the vehicle body.The system is ready for operation. After the work is completed the levelers is lifted, the lip lowers and takes a vertical position, then the platform is returned its original position. They are used in various applications, such as warehouse, stations, sipping dock, postal transportation and express
delivery. Installation can be carried out by both, embedded and suspended installing methods.

Technical parameter
Size:	2000*2000*600mm (or customized)
Load capacity	6000KG/8000KG/10000KG/12000KG
Maximum point load	Top sheet 8mm	6,5 N/mm2
Motor hydraulic unit	1.1KW
Supply voltage	380v, 3 phases
Control voltage	24V
Control unit protection class	IP54
Working fluid	Mobile DTE 10 EXCEL
Class of surface cleaning before painting	Sa2
Thickness of painted layer	60-90um
Operating temperature range	-30--+50ºC

Dock leveler packing: Dock leveler used standard export packaged.(plywood box or according to your requirements)
Dock leveler delivery time: With 7-25 days after we received the dock leveler deposit, Transport way: By sea, or other.
Everybright specialize in the Doors& Windows industry which is managed by an experienced team in production and trading.
The product's scope covers industrial lifting door, aluminum commerical door, dock equipmen, speed door, sectional garage door, handware and motors. All the products from us market by excellent quality, functional safety and a long service life.
From Europe to Asia, from America to Australia, all of products from Everybright enjoy high reputation for its quality, reasonable price and professional service.
Our service:
1. We have professional engineers with rich experience, they will check and test machine befor delivery.
2. We have the best solution for you, and we provide all the support you need to achieve optimum results, or value, or both, from whatever machine you buy.
3. We provide 12 month warranty for all machine accessories. And custom made lock leveler/ size/ color/ material.
4. We can provide free samples to all customers, and make specifical design according to customer's requirement.
5.We offer:
A: Professional CAD drawings
B: Stamped engineered drawing.
C: Custom size and colors are also available.
D: Custom designed and built to meet your specific needs and requirements.
