Hydraulic Concrete Cement Wall Cutting Saw Brick Wall Machine

Product Description

Track Chaser Cutter Concrete Wall Cutting Machine Diamond Wall Saw
Product description:
Hydraulic power station and hydraulic saw head, general said that the hydraulic power station is placed on the ground saw head is running on the wall of the hydraulic power station to provide power to the saw head between them with hydraulic tubing connection.
Product parameters:
Hydraulic oil pump:

Model	600TM	700TM
Max.power	25KW	30KW
Motor cooling method	Air cooling	water cooling
Rated voltatge	380V 50HZ	380V-420V 50HZ-60HZ
Pressure stages	3	3
Max.operating pressure	200bar/20Mpa	210bar/21Mpa
Oil flow rate	30-80L/min	40-100L/min
Dimensions	600mm*650mm*1050mm	500mm*520mm*1100mm
Weight	220kg	140kg

Wall saw:

Model	600TM	700TM
Saw blade diamteter range	800-1400mm	800-1600mm
Cutting depth	620mm	730mm
Max.working pressure	180bar/18Mpa	200bar/20Mpa
Max.oil flow rate	100l/min	100l/min
Gearing	Gear	Gear
Rotation speed	450/950/1300Rpm	450/850/1200Rpm
Dimension	400mm*420mm*400mm	400mm*420mm*400mm
Weight	38kg	39kg

Machine configuration:

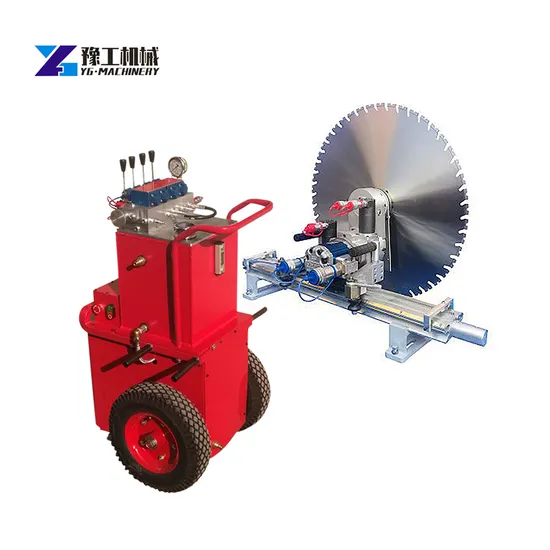

The whole sets of machine consists of hydraulic pump,machine head ,oil pipe,slide rail ,slide rail mounting bracket, saw, saw cover
Product features
1.Reduce the labor intensity, safe and reliable operation
2.with overload protection, powerful, improved cutting capacity and labor productivity.
3.double the working speed to shorten the construction period, to further reduce labor costs, improve the competitive advantage, to expand the scale of construction projects can accept;
4.hydraulic system's own security, Reliability and stability, greatly reducing the cost of the loss of construction equipment;
5.advanced cutting equipment, instead of a strong blow or drill rig hole drilling to the construction in a traditional way.
Working show
Packaging and shipping
Packaging: General export packing or customized packaging according to your requirement.
Shipping: Professional goods shipping forwarders.
Delivery Time: 7 working days after deposit.
