Customized Polyester Paper Making Fabric Round Type Dryer Screen

US$9.00-100.00 1 Piece (MOQ)

Basic Info.

Model NO.
LZPMC
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Surface Treatment
Heat Setting
Manufacturing Process
Woven
Material
Polyester
Machine Speed
Below 2000m/Min
Layer
1/2/3
Paper Kinds
All Kinds of Paper
Srtucture
Woven and Needling
Transport Package
Standard Seaworthy Package
Specification
customized
Trademark
LEIZHAN PMC
Origin
China
HS Code
591192
Production Capacity
10000sets/Year

Packaging & Delivery

Package Size
230.00cm * 150.00cm * 25.00cm
Package Gross Weight
45.000kg

Product Description

Product Description Round yarn dryer screen's application in paper machine:
It is a high-breathing fabric applied to the dryer section of the long-wire paper machine and the board machine. It is made of various plastic synthetic fibers as the main raw material and is processed by weaving and heat setting. Special resin treatment is carried out as needed, and the joints of the net are also advanced.
1) Acid resistance, alkali resistance, wear resistance, high-temperature resistance, and long service life, which is several times the woven dry blanket, canvas, and ordinary dry net.2) Flat mesh surface, high tensile strength, good permeability, and high heat transfer efficiency.3) Easy to install and use, with no imprinting on the interface, and no deformation during use.

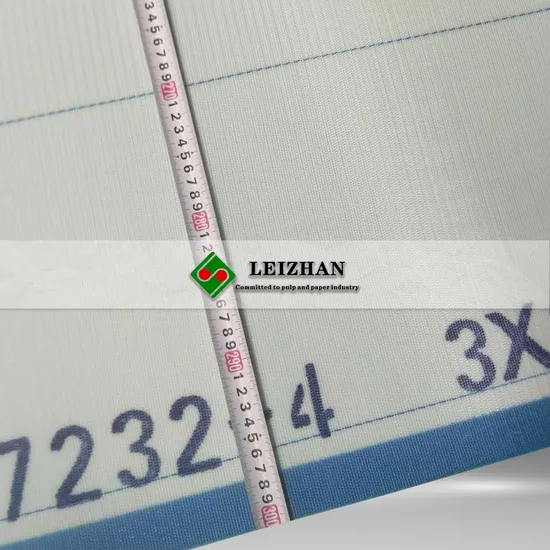

Detailed Photos
Product Parameters
Polyester Dryer Fabric
Weaving Kind Fabric Model Wire Diameter mm Density(root/cm) Tensile strength(N/cm) Air Permeability Weight
Kg/m2
Thickness
mm
Warp Weft Warp Weft Surface Joint Socket Screw-ring interface M3/m2h CFM
Round wire Dryer fabric 22503 0.50 0.50 24 12 2000 1400 900 8000 500 1.06 2.0
24503 0.50 25 12 2000 1400 900 7000 438 1.10 2.0
22504 0.50 24 12 2000 1400 900 12000 750 1.26 2.1
24504 0.50 26 12 2100 1500 950 11000 680 1.3 2.1
4106 0.50 23 12.6 2200 1500 900 6800 425 1.2 1.75
4106-1 0.30 / 0.70 22.8 12.6 2200 1500 900 8000 500 1.3 1.80
26508 0.35 0.50 28 12.5 1680 1400 800 4640 290 0.82 1.1
