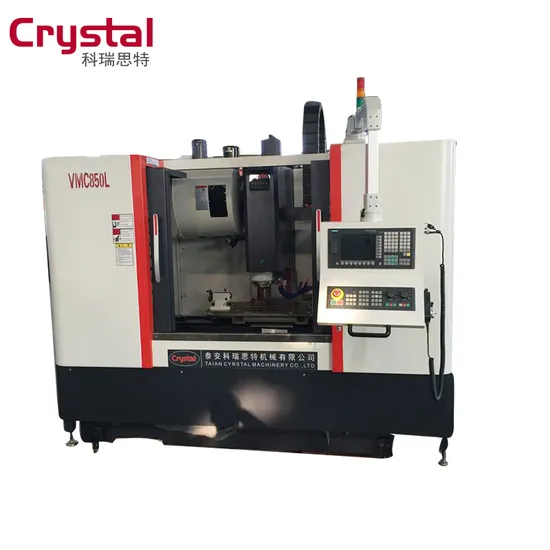

Vmc850 China Metal CNC Machine Center Vertical Machining Center

US$32,800.00
1 Piece
US$32,600.00
2+ Pieces

Basic Info.

Model NO.
VMC850
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Name
CNC Milling Machine
Workbench Specification
1050*500mm
Workbench Maximum Load
600kg
X/Y/Z Axis Coordinate Schedule
800×500×550
Largest Feed Speed
10000 mm/Min
X/Y/Z Largest Fast Moving Speed
20/20/15 M/Min
Spindle Maximum Speed
8000rpm
The Spindle Taper Hole
Bt40
Spindle Motor
11 Kw
X/Y/Z Axis Servo Motor
2.0/2.0/2.0
The Workbench T Slot
18×90 mm
Positioning Accuracy
0.005
Capacity of Tool Storage
16
Maximum Tool Weight
8kg
Electric Capacity
11 kVA
Transport Package
Wooden Package
Specification
CE, SGS, ISO
Trademark
Crystal
Origin
Shandong, China
HS Code
8458110090
Production Capacity
50set/ Mon

Product Description

VMC850 China metal cnc machine center vertical machining center
Standard Specification
l KND1000M system
l Taiwan spindle
l Spindle speed is 8000 rpm
l Taiwan BT40 spindle unit
l Taiwan ball screw and locking nut

Main specification
Items
 Specifications
Pallet size
 1050 x 500 mm
X-axis travel
800 mm
Y-axis travel
 500 mm
Z-axis travel
 550 mm
Distance from spindle center to Column guide
550 mm
Distance from spindle nose to table
105-655 mm
T-type tank
 5-18 x90
Type of taper hole
 BT40
Max spindle speed
 8000 rpm
Spindle power
 7.5 kw
Three-axis torque
 12/12/12 NM
Three-axis motor coupling
 Direct
Three-axis rail-way
 Slide
Max. Weight on pallet
 600 kg
Magazine capacity
 16
Max. Tool weight
 8 kg
Max. Tool length
 350mm
Max. Tool diameter
 100mm(adjacent knife)/
150mm(nonadjacent knife)
Rapid traverse rate
 24/24/20m/min
Cutting feed speed
 10 m/min
Positioning precision
 ±0.008/ ±0.006/ ±0.006mm
Repeatability
 ±0.004/ ±0.004/ ±0.004mm
L x W x H
 2700x 2250 x 2700mm
Weight
5500kg
CNC system
 KND 1000M
