US$3.00-5.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
ISO9001, RoHS, FCC, CE
Transmission Distance
<50m
Electrickty
Getting Electricity From The Car
Add and Delete ID
Short -Circuit or Special Remote Controller
Encryption
Via Special USB Cable
Application 1
Sliding Gate Opening System
Application2
Automaitc Gate Opening System
Application3
Gate Access Control System
Signal Transmission
IR Remote Control
Transport Package
Cartoon
Production Capacity
5000pieces/Year
Product Description
Production Introduction:
JUTAI USB Remote transponder used for door opening system,which is an application soltuon based on wireless transmission and wireless encryption technology expansion;
how this system work:
1.Firstly,Save the USB Transponder ID number into JUTAI Remote Receiver;
2.Receiver connect to gate controller,when the receiver get the signal from the USB transponder,the receiver will judging the ID is Avaible or not;
3.if avaible, the relay inside of the receiver will output signal, and gate will open;
4.when car enter to home guard, left the safe loop Coils, the Gate will close automatically;
5.The USB Remote Transponder is getting power from the car, so when the car started, the USB transponder can not getting the power again,it will cannot work;
Technical Parameter(USB Transmitter):
| Frequency | 433MHZ |
| Electrickty | Getting Electricity From The Car |
| Code | Anti-cracking rolling code |
| Working Distnace | 30m inside of the car |
| Add and Detete ID mode | Though short-Cirecuit or special Remote Controller |
| Encryption | Via Special USB Cable |
| Working Volate | 5VDC |
| Power Interface | USB |

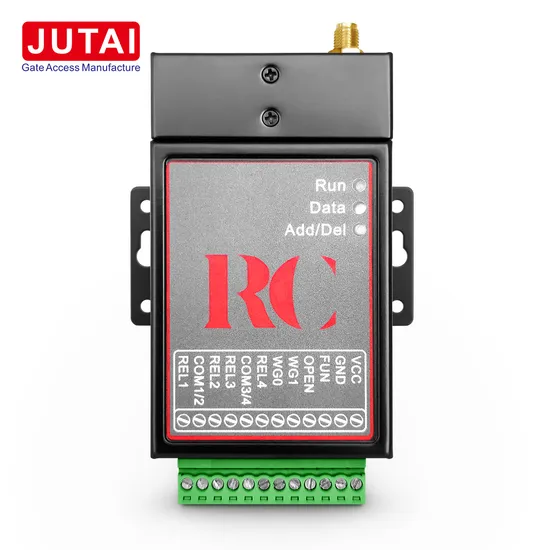

Technical Parameter (Receiver):
| Frequency | 433MHZ |
| Digital Moduation | ASK |
| Code | Anti-cracking Rolling Code |
| Working Distance | 30m in the air |
| Add and Detete ID mode | Though short-Cirecuit or special Remote Controller |
| Encryption | Via Special USB Cable |
| Working Voltage | 12-24VDC |
| Storage Capacity | 32Pcs ID number or more (Optional) |
Size and Diagram for USB Transimitter :
>>
