Dialead Hot Sale Blind Road Stone Processing Machine

Product Description

Product Description
DIALEAD is the top stone machine and stone tools manufacturer in China with a history of more than 20 years.

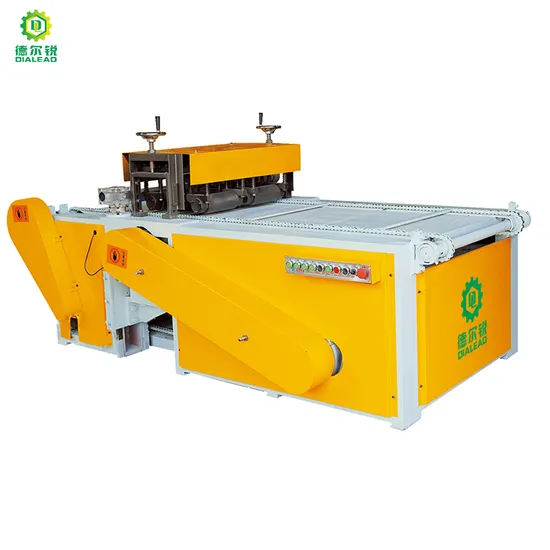

Automatic plane slotting (wire-drawing) machine is mainly used for grooving and wire-drawing of blind road and non-slip ground stone materials, with precise processing size and smooth effect, high production efficiency and flexible processing specifications live, simple operation and other characteristics. In order to meet the processing specifications and production requirements of the majority of users, we have developed 800, 1000, 1200 model series equipped with single or double heads for users to choose.
Technical Features:
Adopting one-button auto-lift saw blade easy operation and high efficiency. Electrical automatic replacement of the spindle to improve the efficiency. The design of 3 row 9 exles rubber pressure wheel to prevent be roasted and extend the service life. Assembled loading and unloading easy operation and high efficiency.
Technical Data
All technical data can be customized to meet your specific needs.

Appellation	Unit	DL-MDLS-M	DL-MDLS-A
Overall Dimensions(LxWxH)	mm	2400*1200*700	2800*1200*800
Processing size(LxWxH)	mm	300*300*20-800*800*60	300*300*20-800*800*60
Main motor power	KW	18-22	18-22
Diameter of blade	mm	300	300
Weight	Kg	700kg	1000kg
Processing efficiency	Sqm/8h	300-500	300-800
Voltage	V/HZ	380/50	380/50

Application


Packaging & Shipping
Company Profile
Quanzhou Dialead Stone Machinery Co., Ltd. is a high-tech enterprise founded by Dialead Stone Tools, together with several domestic well-known engineering colleges, stone machinery technicians and software system companies. Dialead Stone Machinery main products include five-axis bridge cutting machine, four-axis bridge cutting machine, stone copying machine, baluster machine, engraving machine, block cutting machine, polishing machine and etc. With constant technology innovation, stone processing industry has now developed to intelligent automatic processing from initial rough processing. Dialead is always devoted to the improvement of its technology and making contribution to the development of the industry.
Engaged in the production of stone tools (diamond segment, saw blade, engraving knives, stone polishing abrasives) for more than 20 years, Dialead has a good knowledge of stone tools and specific needs of different markets. When it comes to stone machinery, Dialead can well match its stone machines with its stone tools to achieve the best processing effect. This is what tells Dialead apart from other stone machinery suppliers in China.
With complete R & D and production system, Dialead is seeing its sales map bigger and bigger. For domestic market, Dialead Stone Machinery has set up offices in many cities. For international market, Dialead products are exported to more than 60 countries and regions, such as Russia, the United States, Ukraine, Kazakhstan, India, Poland, Jordan, Oman and etc.
Dialead attaches great importance to intellectual property and certification in its development. Dialead has obtained more than 30 patent and more is in the way. All Dialead machines are CE certified to make sure all details meet international standards.
Certifications
Exhibition

FAQ

---
