US$2.00
1,000-9,999 Pieces
Basic Info.
Pressure
Ordinary Temperature
Valve Structure
Pilot Membrane Structure
Power Supply
AC Solenoid Valve
Usage
Safety, Emptying, Drain, Temperature Control, Flow Control
Application
Industrial Usage, Water Industrial Usage, Household Usage
Temperature of Media
Normal Temperature
Standard or Nonstandard
Standard
Inner Resistance(20c)
26+-10%MΩ
Feature
Safe and Eco-Friendly
Transport Package
Standard Packing or Custimzed Packing
Production Capacity
100000
Product Description

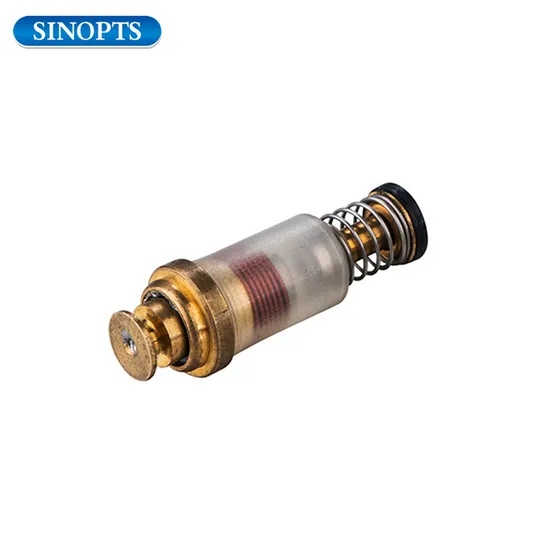

SINOPTS magnetic valve,magnet valve,solenoid valve producer maker Product Description
1. Thermocouple and magnetic valve composegas safety protection devices, thermocouple is a transducercan provide the power, magnetic valve is a controller.
2. When thermocouple tips is heated by fire, cold and heat generate thermoelectric power due to temperature difference, to form closed loop current and make magneticvalve actuation,opening gas path.
3. When the flame is out owing to unexpected reasons, thermocouple rapidly lose potential,
magnet valve lose suction under the action of spring, so close gas path, and play a safety protection role.
| Product Name | SINOPTS magnetic valve,magnet valve,solenoid valve producer maker |
| Applicable gas species | Natgas, LPG, artificial coal gas etc |
| Opening electrical current | ≤120mA |
| Closing electrical current | ≥40mA |
| Free stroke | 49.5±0.5mm |
| Working stroke | 42.5±0.4mm |
| Inherent resistance | 20mΩ±10% |
| Sealing force(full compression) | ≥4.8N |
We can also provide the customized products.
Low-current solenoid valve for anti-burnout function
Significantly increases the number of coil turns from conventional valves,resulting in a significant reduction in opening current and power consumption.
This allows the solenoid valve to be powered directly by a drycell and become an independent actuating element
Ultra small double coil solenoid valve
Small aluminum solenoid Ultra small double coil solenoid valve
Ultra-small double coil solenoid valve,now using integrated cooker for more Combines the external dimensions of an external small aluminum valve with the internal structure of an internal dual coil valve
Product Show
Product Applications
Our Services
Company Information
FAQ
Q1: Do you provide samples ? A: Yes.Samples can be made as customer request. Q2: What's your delivery way? A:By sea, by air, by courier...according to per request. Q3: How can I pay? A: T/T, PAYPAL,WESTERN UNION,MONEYGRAM,ALIPAY.
>>
