US$5,000.00-12,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Making Method of Parison
Stretch Blow
Computerized
Computerized
Transport Package
Wooden Case
Production Capacity
200sets/Year
Product Description

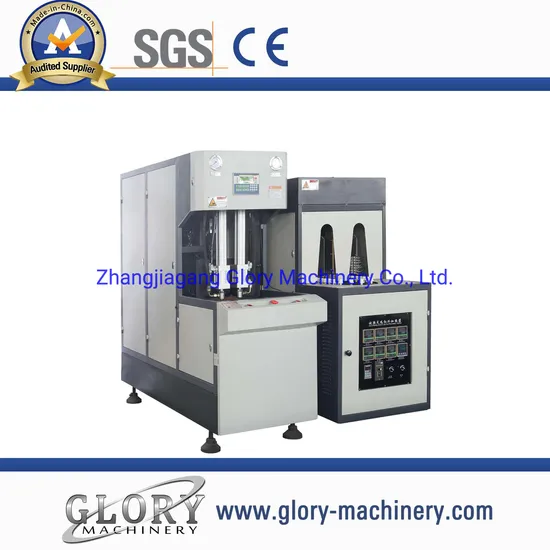

GMS-2600:
Product max volume:2L
Suitable for blowing bottles between 150ml to 2000ml
Necessary auxiliary devices:High pressure air compressor, Air filter. Semi-automatic blow moulding machine
Use integated mic computer controler,with OMRON control chip,the response speed is very quickly and the timing very precisely.Use life durable and failture rate very low.It's the revolutionary product of industrial control. High responsivenesspneumatic components,action timely and precisely Thorough safe operation mechanism,start-up with two hands,avoid the accident during the operation Infrarted heating technology,safe and energy conservation,no pollution of the environment.With the 8 rates adjustable temperature controler,make the temperature suitable for blowing. Technology advantage:
Special design,high rigid compound die structure Wide adaptability, suitable for every type mould thickness Adjust convenience No mould rolling out More energy conservation,no need much air supply High burnish principal axis, with very precise polishing, light action and low noise. Short mould stroke,quick action All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100% Hig dead-weigh, ensure the steady during the operation
Main parameters :
| Main machine (blowert + oven) | Model type | Tech data |
| Product Spec | Max. product volume(L/cav) | 2 |
| Max. preform neck size(mm) | 100 |
| Max. product diameter(mm) | 180 |
| Max. product height (mm) | 300 |
| Cavities | 2 |
| Blow molding part | Die force (KN) | 100 |
| Die stroke (mm) | 270 |
| Max. mould size(mm) | 390*345 |
| Mould thickness | Adjustable |
| Mould spacing(mm) | Adiustable |
| Max. pulling stroke(mm) | 400 |
| Operation pressure(Mpa) | 0.8-1.0 |
Operation air pressure consumption (1tr/min) | 200 |
| Blow pressure(Mpa) | 1.2-2.8 |
| Blow air pressure consumption (1tr/min) | 300 |
| Output(pcs/h) | 800 |
| Machine size(LxWxH)(m) | 1.46*0.58*1.8 |
| Machine weight(KG) | 650 |
| Oven | Temperature grade(rate) | 8 |
| Heating time(S) | 90-200 |
| Voltage(V) | 220 or as your request |
| Frequency(HZ) | 50/60 |
| Total power(KW) | 16 |
| Oven Size (LxWxH) | 1.35*0.55*1.15 |
| Oven weight (KG) | 300 |
>>
