TAEPO - Your Professional Fiber Optic Termination Box Manufacturer in China !
Descriptions

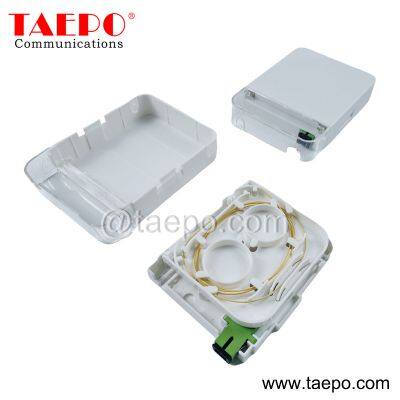

Fiber OpticTermination Box indoor SC 1 fiber (TP-3323-1 FTB) provides a transition point between incoming cable and building access points for residential or business fiber installations.
The termination box is designed to house up to one SC type adapters and is compatible with SC field assembly connectors. Alternatively, an integrated splice holder houses up to two splices for pigtail termination.
The termination box is compatible with round and bow-type indoor drop cables with bending radius greater than 40mm
Main Features
Compact size
Slack storage area
Easy installation
Tindy wiring
Snap on cover
Bending radius greater than 40mm
Multi-location cable entry
Low insertion loss
High return loss
Good durability
Schematic Diagrams
Packing Pictures
Order Data
| Item No | Descriptions |
| TP-3323-1 | Fiber termination box (FTB), indoor, SC, 1 fiber, plastic housing, 115x86x22mm, without adapters, pigtails |
| TP-3323-2 | Fiber termination box (FTB), indoor, SC, 2 fibers, plastic housing, 115x86x22mm, without adapters, pigtails |
>>
