Good Price Pneumatic Rivetless Riveting Machine for Air Duct Joint

Product Description

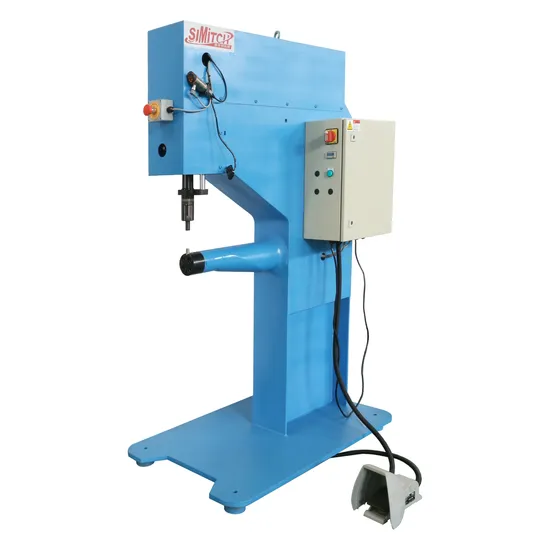

CEU 08-01 Model Pneumatic Hydraulic Self Clinching Machine for Air Duct Jointing
It is used for clinching sheet without rivets.
Application:
Galvanized sheet,Galvanized steel sheet, NO.316 Stainess steel sheet,copper sheet, Aluminium alloy sheet
Thickness of sheet, we can customized according to customers requirements,.
About air supply:2-6bar (2-6kg)
Pressure controller:
We will set pressure according to thickness of sheet material.
Pneumo-hydraulic drive cylinder
Electromagnetic valve function:
It can control gas circuit and reversing( up and down movement)
Idle stroke adjusting valve control valve
Molds:it is customized.

Model	Capacity	Air supply	Leading time
CEU08-01	76KN	6bar	7 days

1. Joint point are firm and credibility
2. Rivetless, low cost.
3. Match the pre-pressure device,overcoming distort badly.
4. Riveting time, pressure, speed are all can be adjusted.
5. National patent technology, number shows can accuracy to 0.1 second
6. Press gently , the molding tool loss is small
7. Can transform into round or square
8. The riveting area has no stress
9. Can not break the plating or painting in surface
10. To the metals material request not high, the copper ,aluminums, steel, zinc are all unlimited
11. Riveting process has no vibration, low noise, low consumption
12. Unnecessary to processing in before or after riveting joint, allow to have the mezzanine and multi-layer conjunction
13. Advanced counter and time shows window
14. The electricity control system's operating are convenience and safety
15. Can riveting different shapes after replaced the different die

---
