Product Description
Product Description

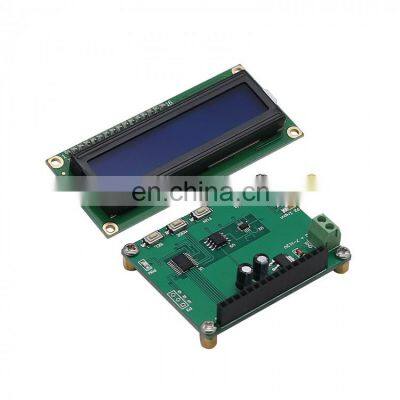

RF Power Meter -50 to 0dBm 1MHz to 10GHz Settable Attenuation Value for Radio Instrument Product Description Description:The HP363 is a radio frequency power meter with buttons, featuring simple structure, convenient application, stable performance, high sensitivity, and fast measuring speed. Application:- For Radio Frequency Power Meter - For Instrument Calibration Technical Parameters: - Power Measurement Range: -50 to 0dBm (External RF Attenuator is up to 100dBm)- Power Measurement Resolution: 0.1dBm - Frequency Measurement Range: 1-10000MHz (1MHz-10GHz)- Measuring Power: 1nW-1mW- Working Voltage: 7-12V DC - Operating Current: <50mA- Working Temperature: -40℃ to 65℃- Storage Temperature: -40℃ to 65℃- Size: 55 x 45 x 10mm (L*W*H)Package Included:- 1 x RF Power MeterIntroduction of Display Screen:- Unit: dBm- Buttons: FUN: Function Button MODE: Button to Switch Interfaces SEL: Automatic Add or Subtract Button The Meaning of Displayed Value:Here is an example:Note: -51.2dBm is the signal value, 610uV is the input voltage, and 7nW is the input power. How to Set RF Power Attenuation Value?Here is an example:- Press FUN; - Press SEL: SUB to Substract; ADD to Add; - Press FUN to Save Your Set dB Value Note: While connecting to different external RF power attenuators, you can set the corresponding attenuation coefficient so as to read the correct power parameters. Wiring:P1 Wiring Definition:- VDD: Power Supply + of the Module (7V-12V)- GND: Power Supply - of the Module P2 Wiring Definition:- FX: Not Used - RF: Frequency Signal Input - GND: Power Supply - Detail photo FAQ Q1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Samples arrived often need 3-5 days. Q3. Do you have any MOQ (minimum order quality)limit?A: Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive?A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional. Q5. How to proceed an order?A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production. Q6. Is it acceptable to print my logo on the product?A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample. Q7: Do you offer guarantee for the products?A: Yes, we offer one-year warranty for our products. Q8: How to deal with the flaw?A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8% Packing&ShippingPackage: Normally we use the standard exporting packaging. We also can according to clients' request . Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.3. By Sea: Delivery from the Shanghai sea port . Company informationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery
>>
