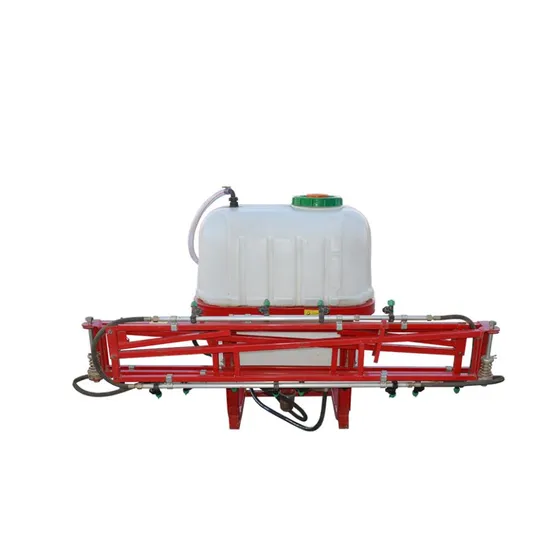

Agricultural Hydraulic Tractor 3 Point Linkage Mounted Boom Rod Sprayer Field Boom Sprayer

US$300.00
1-4 Pieces
US$289.00
5-9 Pieces
US$269.00
10+ Pieces

Basic Info.

Model NO.
3WPX-600-12
After-sales Service
Yes
Warranty
1 Years
Installation
Tractor Mounted
Liquid Contained
Pesticide
Spraying Shape
Mist
Volume
600L
Power Supply
Tractor
Technics
Blow Moulding
Material
PE
Type
Aligning Sprayer
Item
Field Boom Sprayer
Structure
Mounted Type
Dimension (mm)
2700*1100*1440
Max Capacity (L)
600
Spray Rod Length (M)
12
Matched Power (HP)
50HP
Working Pressure (MPa)
0.8-1.0
Rated Flow (L/Min)
80-100
Working Rate (Area/H)
35
Customized
Accepted
Transport Package
Standard Package for Export
Specification
Customized
Trademark
Harvester
Origin
China
HS Code
84244900
Production Capacity
5000PCS/Month

Packaging & Delivery

Package Size
300.00cm * 200.00cm * 150.00cm
Package Gross Weight
300.000kg

Product Description

Product Description
In large-scale farming, the boom sprayer is the most prevalent form of herbicide application device. A boom sprayer has many components, the most important being the nozzles, which split the herbicide into many small droplets that are projected through the air to the target. So our boon sprayer is special designed for spraying pesticides, insecticides and fertilizer directly on crops.
Product Parameters
Model Structure Dimension
(MM)		 Max Capacity
(L)		 Matched Power
(HP)		 Spray Rod Length
(MM)		 Working Pressure
(Mpa)		 Rated Flow
(L/Min)		 Working Rate
(Area/H)
3WPX-400-8 Mounted Type 1880*1140*1240 400 ≥40 8000 0.8-1.0 60-80 20
3WPX-500-12 Mounted Type 2700*1100*1300 500 ≥40 12000 0.8-1.0 60-80 35
3WPX-600-8 Mounted Type 2200*1190*2300 600 ≥50 8000 0.8-1.0 80-100 20
3WPX-600-12 Mounted Type 2700*1100*1440 600 ≥50 12000 0.8-1.0 80-100 35
3WPXY-600-12 Mounted Type 2700*3300*1400 600 ≥50 12000 0.8-1.0 80-100 35
3WPX-800-12 Mounted Type 2700*1140*1500 800 ≥60 12000 0.8-1.0 80-100 35
3WPX-800-18A Mounted Type 3000*3000*1500 800 ≥60 18000 0.8-1.0 190 45
3WPXZ-800-18 Mounted Type 3100*3100*1800 8000 ≥60 18000 0.8-1.0 190 45
3WPX-1000-12 Mounted Type 2700*1000*1530 1000 ≥60 12000 0.8-1.0 80-100 35
3PWX-1000-18 Mounted Type 3100*3300*2100 1000 ≥80 18000 0.8-1.0 190 45
3WPX-1200-22 Mounted Type 4200*3600*2400 1200 ≥80 22000 0.8-1.0 215 55
3WPX-1200-24 Mounted Type 2400*2100*2900 1200 ≥90 24000 0.8-1.0 215 55
