High End A4 Series 1325 1530 2030 2040 Atc Wood CNC Router Machine for Woodworking

Product Description

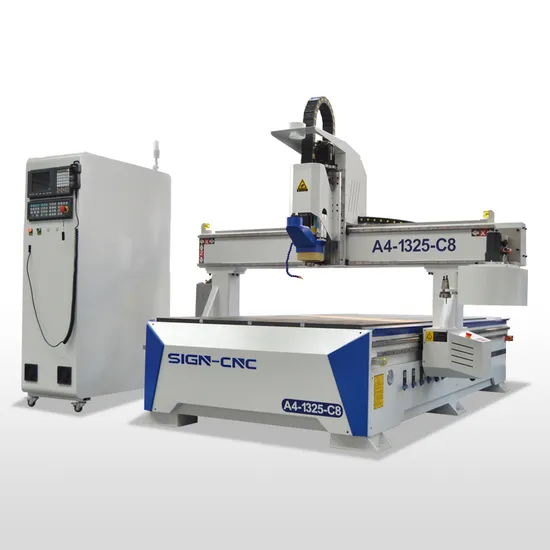

High End A4 Series 1325 1530 2030 2040 ATC Wood CNC Router Machine For Woodworking
Application:
Wood furniture Industry, Furniture decoration, music instrument, wooden arts and crafts, large scale board engraving, solid wood furniture, solid wooden mural, composite door, free-paint door, cabinet doors, advertising industry, Die industry, Relief sculpture, toy production, bedside cupboard, screen sculpture etc.
Materials:
Woods, acrylics, artificial stones, artificial marble, bamboos, organic boards, double-color board, PVC board, aluminum, brass and other materials.
Technical Parameters:

Model	A4-1325-L8	A4-1530-L8	A4-2030-L8
Working area	1300*2500mm	1500*3000mm	2000*3000mm
Z feeding	300mm
Frame structure	Steel casting-welding
Type of table cover	Vacuum table with T-slot
Vacuum pump	5.5kW/7.5kw air cooling
Z axis transmission	Ball screw and 25 square guide rails
X Y axis transmission	TBI / Hiwin 25 square guide rails + rack
Max. Rapid Travel Rate	33000mm/min
Max. Working Speed	25000mm/min
Command Code	G code * .u00 * .mmg * .plt
Operating voltage	AC 380V/50Hz
Spindle power	9.0 KW
Tool Magazine	8 - 12
Type of cooling	Air cooling
Spindle Speeds	0-24000rpm/min
Drive motor type	Servo
operating system	Taiwan SYNTEC
Dust Collector	With
Lubrication system	With
Sensor for positioning the cutter	With
Supported software	Artcam software, Type3 software
Operating conditions	Humidity: 30% -75%, temperature: 15 - 45 degree
Warranty	One year

Contain:

NO.	Name	Features and use	Quantity
1	Frame of machine bed	Large steel tube welding	1 set
2	Gantry	Heavy duty	1 set
3	Spindle	9kw HSD air cooling spindle	1 pc
4	Inverter	11kw Fuling	1 pc
5	Motor	Panasonic servo motor	4 sets
6	Driver	Panasonic servo driver	4 sets
7	Syntec control card	6MA	1 set
8	Hand wheel	Operate for simple work	1 pc
9	Control cabinet	Computer cabinet and electrical component installation	1 pc
10	Guide rails	Hiwin 25 square guide rails	1 set
11	Rack gear	Helical rack and gear	1 set
12	Working table	Vacuum table with T-slot	1 set
13	Vacuum pump	Suction the air between the material and the table to be a vacuum to fix the material.	1 pc
14	Positioning pneumatic cylinder	To fix the plate faster and more accurately, improving work efficiency	1 pc
15	Auto oil lubrication system	Lubrication the rails and rack gear	1 pc
16	Dust collector	3kw double bags	1 pc
17	Tool sensor	Adjust the distance from the tool to the materials	1 pc
18	Tool Magazine	Place of put the cutter with 8 position	1 set
19	Collets	Hold the bit on the spindle	8 pcs
20	Materials holder	Fixing material when engraving	8 set
21	Cutter	Used for engraving and cutting	2 box
22	Connecting cables	Data Cable, Power Cable, etc.	1 set
23	Wrench	Used for change the cutter or routine maintenance	2 pcs
24	L-type screwdriver	Used for L-type screwdriver	1 set
25	Tool box	Loading tools and some gadgets	1 pc

Option:
Samples
Payment methods:

MOQ	1 set
Port of loading	Qingdao, China. Other cities are ok
Time of delivery	15 working days after receiving payment
Payment methods	T/T in advance, 50% deposit, the balance should be paid before shipping

Package:
All the machine parts have been packaging, and whole of the machine with waterproofing membrane. And then have been package use standard wood case (The fumigation-free ), on the case top and bottom have steel tube for support. let it more strong to avoid damage during the transport and for long distance transportation.
FAQ
1. Q: How do you send your machine?
A: We can send our machines by sea, land and rail way, or we can send the machine to your doors.

---
