Product Details
Product Description
Product Description

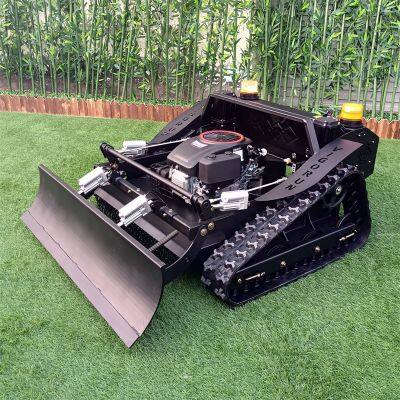

Crawler Remote Controlled Brush Mower (VTLM800 with snow blade)
Official website:
Email: 816@ssrbot.com/ vigoruntech16@gmail.com
WhatsApp/WeChat: +86 19563012862
Features:
1) Security
Our remote-controlled lawnmower allows for safe operation on hazardous slopes by enabling remote control functionality.
This feature keeps staff away from the risk of rolling down the slope while still efficiently mowing the grass.
2) Worm gear & worm reducer
The walking motor is equipped with a worm gear and worm reducer.
The nature of this reducer design provides an inherent self-locking feature.
This means that even when power is cut off, the worm gear mechanism prevents the motor from moving due to the high friction generated between the worm and worm wheel.
As a result, the motor remains stationary, ensuring safety and preventing any unintended sliding or rolling on the slope.
3) Walking motor & reducer
Our mower features a powerful brushless 48V motor with a 110mm diameter coil, ensuring strong power output with minimal heat generation.
It is designed to support long hours of continuous operation.
Equipped with a large RV063 gearbox with a high reduction ratio, our slope mower guarantees strong torque at low speeds and exceptional climbing ability.
4) Oil pump & forced lubrication
The gasoline engine equipped with an oil pump is capable of forced lubrication, which is essential for reliable operation and preventing premature wear.
This system ensures that the engine receives a constant supply of pressurized oil for effective lubrication, particularly during the demanding conditions of driving on a slope.
5) High efficiency & labor savings
Our lawn mower, with a travel speed of up to 4 km/h and a cutting width of 800mm, offers high efficiency.
While requiring staff for remote control operation, the wide cutting width significantly reduces labor costs, making it a cost-effective solution.
Specification:
Model: VTLM800
Cutting Width: 800mm
Walking Speed: 0-4km/h
Working Degree: 0-60°
Adjustable Cutting Height: 25~120mm
Min Ground Clearance: 20mm
Remote Control Range: 200m
Engine
Brand: Loncin
Fuel Type: Gasoline
Engine Type: Single cylinder, air cooled, 4-stroke, OHV
Power / Emission: 9.2Kw / 452cc
Start Method: Electric start
Lubrication System: Splash + pressure
Emission Standard: Euro5/EPA
Fuel Tank: 7L
Engine Oil Capacity: 1.2L
Working Time: 4h (full fuel)
Walking Motor
Motor Type: Servo control
Voltage / Power: 48V / 1000W
Dynamo: 56V 4000W
Battery: 48V 20Ah
Machine Size: 1240*1170*660mm
Machine Weight: 235kg
Package Size: 1320*1220*810mm
Gross Weight: 290kg
>>
