Clw 10tons 20000L 20cbm LPG Gas Tanker Cylinder Filling Station

Product Description

CLW 10tons 20000L 20cbm lpg gas tanker cylinder filling station
1. Storage medium of Cylinder Bottling Station: LPG, Liquid ammoina,Dimethyl ether,Iso-butane,Pentane and etc.
2. Available tank capacity of Cylinder Bottling Station: 5m³~200m³,2ton~100tons
3. Manufacturing standards of Cylinder Bottling Station: GB-150, ASME VIII Division I U STAMP, CCC, ISO9001 : 2008
Main details :

Material:	Q345R Or SA516	Thickness:	10mm
Volume:	5cbm,5000liters,5000litres,5000L	Capacity:	2tons,2.5ton,2tons,2ton,2t
Diameter:	1600mm	Designed Pressure:	1.77Mpa,17.7Bar
Corrosion Allowance:	1mm	Color:	Customized

Description:

ITEM	PARAMETER	ITEM		PARAMETER
Volume	5cbm	Thickness of Shell		10mm
Tank Material	Q345R	Thickness of End plate		10mm
Overall Size	3070*1620*2210mm	Tank Net Weight		2030kg
Tank Diameter	1600mm	Loading Capacity		1995kg
Design Pressure	1.77Mpa	Gas Density		420kg/M3
Hydraulic Test Pressure	2.22Mpa	Corrosion Allowance		1mm
Design Temperature	-20ºC~60ºC	Heat Treatment		Bulk
Vapor Outlet	DN50	Gas Outlet		DN50
Life time	15 years
Accessories
Model	Item		Qty	Junction surface
J41N-2.5-50	Stop Valve DN50		6	RF
J41N-2.5-25	Stop Valve DN25		2	RF
J41N-2.5-80	Stop Valve DN80		1	RF
J24W-320-DN6	J24W Needle Valve M20*1.5		1
HG21584-95	Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5		1	RF
A42F-25-80	Safety Valve DN80		1	RF
Y-100T	Pressure Gauge M20*1.5 1.5degree 0~4Mpa		1
WTQ-280	Thermometer M33*2 2.5 degree		1	-40ºC~60ºC

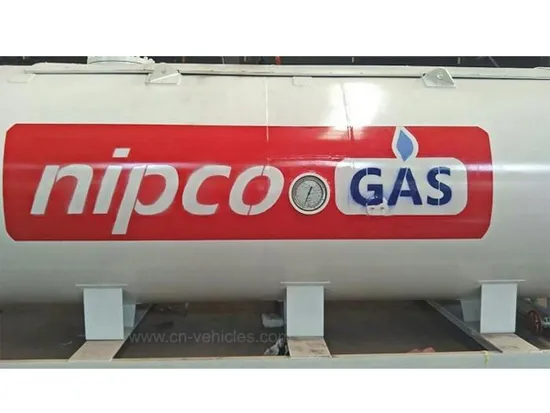

Picture:
Application:
LPG truck is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutene, etc.
Details:
Loading :
Customer visit:

---
