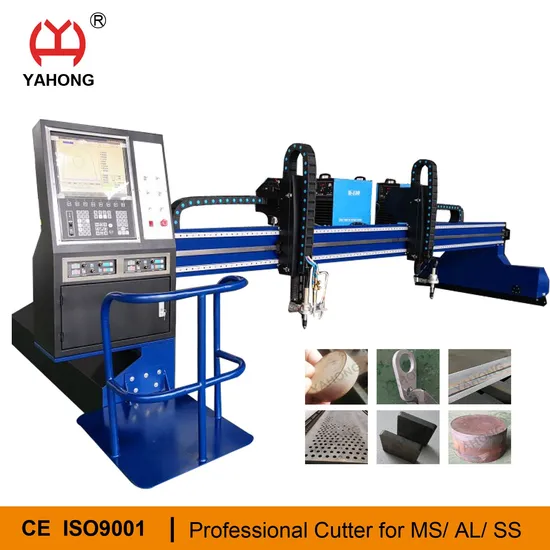

Heavy Duty Gantry CNC Plasma Cutting Machine for Metal with Oxygen Cutting and Plasma Cutting

Product Description

Heavy Duty Gantry CNC Plasma Cutting Machine for metal with oxygen cutting and plasma cutting

I. CNC Plasma cutting machine Features:
1. Heavy-duty gantry cutting machine adopts heavy-duty frame, heavy-duty guide rail, good stability, large span, the gauge has a width of 4 meters, 5 meters, and 6 meters, and the length can be from 8 meters to tens of meters.
2. It can realize double flame or double plasma cutting at the same time, forming 2 workpieces at a time, increasing double efficiency, saving half of the time, half of labor and one piece of equipment.
3. Equipped with high-power plasma power supply, such as 200A 300A 400A, to achieve plasma thick plate cutting. The plasma cutting speed is 3-5 times that of flame cutting, which improves production efficiency.
4. Multi-head plasma or flame straight cutting can be added, multiple workpieces at the same time, saving time.
5. The heavy-duty gantry cutting machine has beautiful appearance and high-end atmosphere, demonstrating the strength of the enterprise and improving its competitiveness among competitors.
II.Plasma cutting machine Advantages:
Bed body:
1. The frame is welded by steel plate, vibration aging is used to relieve stress and prevent deformation.
2. The crossbeam is processed by large-scale gantry milling to ensure the straightness and flatness of the rack and guide rail and the accuracy of the machine.
3. The use of industrial heavy-duty guide rails ensures the stability of the machine during long-term operation.
4. The body is sprayed with plastic, wear-resistant and corrosion-resistant.
Configuration:
1. Install the plasma automatic height controller. During the machine cutting process, the cutting torch can automatically rise and fall according to the unevenness of the steel plate to prevent the cutting torch from crashing, extend the life of the cutting torch, and save costs. Optional: flame automatic height controller.
2. The control system has a graphic display function, which can observe the cutting process in real time. And supports 9 languages, it is easier to use your own native language to operate. With power-off memory function, you can continue cutting after the power on, saving time for cutting from the beginning. There are 48 kinds of graphics, regular graphics can be directly used, change the size, set the quantity, save the computer drawing time and improve efficiency.
3. Adopting Japanese Panasonic servo motor driver, stable operation, low noise and no step loss.
4. Install a special reducer to reduce the speed and increase the torque to make the machine run more smoothly.
5. Install flame automatic igniter and tempering device to avoid burning hands when igniting with a lighter and explosion due to tempering during cutting to ensure safety.
6. Install the plasma anti-collision holder, which will automatically stop when the torch hits the steel plate to prevent the torch from crashing and save costs.
7. Equipped with fully automatic nesting software, which saves time for typesetting and improves the utilization rate of steel plates.
8. Optional remote control, the control distance is 30 meters, the operation is more convenient.
III. Metal plasma cutting machine Parameters:

1	Cutting Shape			Steel plate with any plane shapes fromed by straight lines and arcs.
2	LCD Display Dimension			10.4 Inches
3	Effective Cutting plate Size			3000*12000mm
4	Railway Size			4000*14000mm
5	Flame Cutting Thickness			5-200mm
6	Plasma Cutting Thickness			0.5-25mm (according to plasma power)
7	Height Control			Electric Height Control+Arc Voltage Height Control(THC)
8	Motor and driver			Japan pansonic servo motor and driver
9	Reduce			Chinese top reducer
10	Cutting Speed			0-10000mm per minute
11	Drive Mode			Double driver
12	Cutting Mode			Plasma and flame
13	Ignition Device			Auto
14	File Transmission			USB
15	Cutting Gas			Flame: Oxygen+ Acetylene/ Propane/ Coal gas Plasma :air
16	Gas Pressure			Max. 0.1 Mpa
17	Oxygen Pressure			Max. 0.7 Mpa
18	Cutting Accuracy			±0.5mm
19	Software			FastCAM software
20	Power Supply Voltage/Frequency			220V/110V 50HZ 60HZ
21	Rated Power Supply			1500W
22	Working Temperature			-10ºC-60ºC. Relative Humidity from 0-95%

IV. Plasma cutting body Processing Equipments
V. Customer Site
VI. Cutting Samples:
VII. Plasma Power Model and Quality Cutting Thickness
According your cutting thickness ,please choose suitable plasma model for you.
VIII.Why Choose US?
1. More than 10 years of production experience to ensure product quality and timely delivery.
2. The perfect after-sales service team can solve all kinds of problems in time. You can communicate via email, phone, whatsapp, skype, wechat, etc.
3. We are a manufacturer, have enough spare parts and consumables, and deliver them in time to solve your worries.
4.Provide OEM/ODM Service.
VIIII.Certificates
