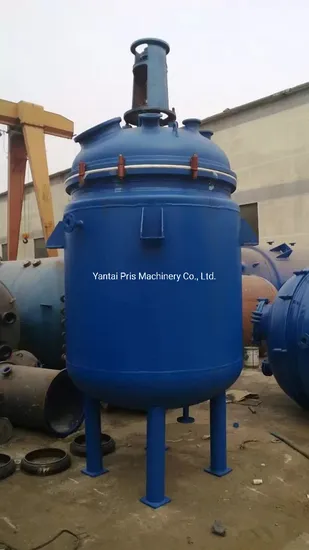

Glass Lined Reactor Special for Making Strong Acid and Alkali Products

Product Description

Glass lined reactor for making Pharmaceutical intermediates product,Chlorination reactor,Bromine,Polycarboxylic acid water reducing agent,Chlorinated Paraffin,Glyphosate,Chloroacetic acid,etc.
Glass lined reactor equipment is made by applying enamel with high silicon content on the metal surface, and enamel burning at 1200°C to make the enamel adhere to the surface of the metal iron tire. Therefore, it has the dual advantages of glass-like chemical stability and metal strength.
Our company produces all kinds of reactor(or tanks) and accessories, specializing in the production of chlorinated polyethylene, glyphosate and other strong corrosive enamel reaction kettles, using 5809 high temperature enamel, using electric furnace firing.
The company mainly produces Class I and Class II pressure vessels in large-scale chemical and medical equipment, as well as various stainless steel and non-standard equipment production and glass-lined equipment maintenance, production and firing. Its main products: production, firing and installation of all kinds of glass-lined reaction tanks, glass-lined storage tanks, glass-lined distillation tanks and other first- and second-class pressure vessels. The products are exported to all parts of the country, and have maintained long-term business cooperation relationships with larger domestic enterprises. The quality of their products has
won the trust of users.
K type glass lined reactor technical data:

No	Nominal capacity(L)	Actual capacity(L)	Heat exchange area(m2)	Motor Power (Kw)	Rotation Speed		Main Dimension(mm)									h		Wight (kg)
					Anchor/ frame	Turbine/Paddle	D	D1	D2	D3	H	H1	H2	H3	H0	Anchor/ frame	Turbine/ Paddle
1	K50	70	0.34	0.75	63rpm	85rpm	500	600	720	270	480	300	285	945	2030	50	90	330
2	K100	127	0.84	0.75			600	700	840	270	600	340	320	945	2170	60	110	430
3	K200	247	1.44	1.1			700	800	940	300	780	350	345	953	2440	60	130	530
4	K300	369	1.75	3.0			800	900	1040	350	800	380	380	1154	2770	80	150	595
5	K500	588	2.64	3.0			900	1000	1172	350	1070	480	405	1154	3030	85	160	655
6	K1000	1245	4.5	4.0			1200	1300	1478	400	1270	500	495	1276	3360	110	210	1331
7	k1500	1714	5.2	4			1300	1450	1655	400	1470	600	505	1276	3326	100	210	1623
8	k2000	2160	7.02	4			1300	1450	1655	400	1815	600	505	1276	3671	100	210	1931
9	K3000	3237	8.61	5.5			1600	1750	1960	450	1810	600	595	1316	3791	130	240	2638
10	K4000	4255	11.7	5.5			1600	1750	1960	450	2310	600	595	1316	4291	130	240	3225
11	K4000	4340	10.9	5.5			1750	1900	2152	450	2025	700	643	1316	4046	130	270	3500
12	K5000	5380	13.63	7.5			1600	1750	1960	450	2810	700	580	1316	4791	130	270	3850
13	K5000	5430	13.8	7.5			1750	1900	2152	450	2455	700	643	1316	4508	130	270	4046
14	K6300	6493	15.8	7.5			1750	1900	2152	450	2885	700	643	1395	5027	130	270	4626
15	K8000	8450	18.3	11			2000	2200	2457	510	2785	800	705	1545	5225	150	330	6368
16	K10000	10520	21.15	11			2200	2400	2708	550	3040	800	750	1770	5588	150	360	7655
17	K12500	13040	25.79	15			2200	2400	2708	550	3680	800	750	1770	6730	150	360	9173

Notes:
1.The enamel layer produced by our company can resist the corrosion of various concentrations of organic acids, inorganic acids, organic solvents and weak bases.
2.This product is not suitable for hydrofluoric acid, fluoride ion-containing medium, strong alkali and concentrated phosphoric acid under specific conditions (concentration ≥30%, temperature ≥180 ºC)

---
