Paper Pulp Polyester Multi Disc Filter Bag for Paper Machine

Product Description

Product Description

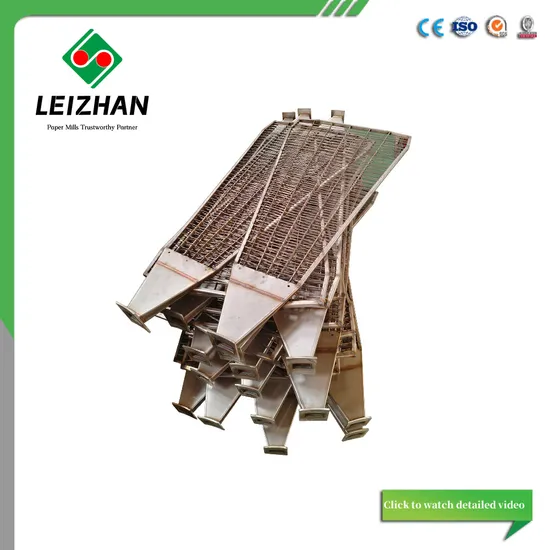

Disc Filter Segment is used on the disc thickener and disc filter.
Multi-disc Thickener and filter belong to continuous rotary thickening equipment, mainly used for dewatering and concentration of mechanical wood pulp, waste paper pulp, reed pulp, bamboo pulp straw pulp, etc., which has low freeness, short fiber or high density.
The disc thickener works on the principle of dewatering by gravity through the level difference between the stock outside the filter net and the white water in the disc. When the stock with the consistency ranging from 0.8 to 1.2 percent enters the stock vat, it is instantly adsorbed to the disk sector.
Detailed Photos Product Parameters
The water in the disk flows to the ends of hollow shaft through guide slot and then is discharged. The stock attached on the disc will be washed away by high pressure water. When the stock level is higher than the adjusting valve, the stock will flow to the stock vat and then be discharged. The outlet consistency ranges from 3 to 4%.

Item \ Type	Unit	Parameter
Filter Area	m2	260/234	312/286	364/338	416/390	468/442		520/494
Production	T/m2d	0.6~1.2
Clear degree of Clear Filtrate	Mg/L	<100
Inlet Consistency	%	0.5~1.2
Outlet Consistency	%	8~12
Quantity	pcs	10/9	12/11	14/13	16/15	18/17		20/19
Main Motor	kW	11	15				18.5
