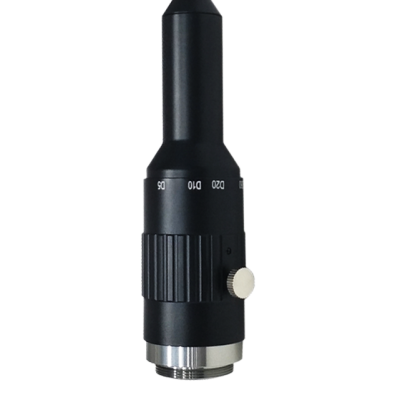

RV3652 Inner Barrel 360° Inspection 3.0Megapixel FA Lenses 2/3" Camera High Resolution Compact Object Lens
* 360°inner barrel inspection
* High resolution & compact size
* Inspect small size object at wide sight
* Application for tube, auto, container, bottle etc. inside inspection

Format		2/3“
Resolution		3.0 Megapixel
Image circle		Φ6.6mm
FOV Dia*Height	2/3	Standard 20*23mm ( Min.5*5 / Max.120*123 )
Wavelength		450~650nm
Diamension		Φ33.6*113.6mm
Mount		C
Diameter (mm)		Height (mm)	Working Distance (mm)
5		5	2.7
10		10	6
20		21	11
30		31	17.2
40		41	23
50		51.2	29
60		61.4	35
80		82	46.5
100		102	58.3
120		123	70

Picture 1 : Tea cup inner side inspection
Picture 2: Stainless steel pipe inner side inspection

---
