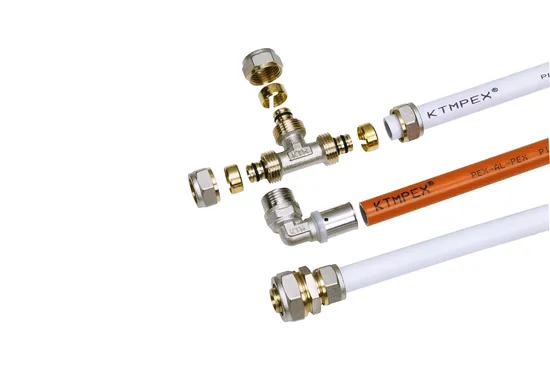

Overlapped Pex-Al-Pex Pipe or Aluminium Plastic Pipe (Hz8004)

Product Description

Overlap pex-al-pex pipe
1. For water(cold & hot)/gas pipe system, Composed of 5 layers:
-External Plastic/external Glue/Aluminum/internal Glue/internal Plastic
2. Certificates we have: AENOR, SKZ, SNAS, PHZ, SGS, WATERMAKR, STANDARDSMARK
3. Material: CONSTAB PEX
4. QC: Including spot inspection on production lines, all the tests required by each standard done in our lab rooms
5. Applications:
-Cool & Hot Water Pipe System
-Housing Gas Pipe System
-Under floor heating System
-Solar Energy & Air-conditioning Matching Pipe System
-Medical, Foodstuff & Chemical Industry Pipe System
6. Characters & Advantages:
-Wide range working temperature(-10C~95C), Hi-pressure resistance
-30% more flow than metal pipe
-50 year working life
-Non-corrosive, scale-free
-Hygiene, no oxygen permeability, no growth of Microorganism
-Non-inflammable, non-static
-Easy bending but never spring back
-Light in weight, easy to carry and store
-Few pipe fitting applying leading to little leakage
-Economical price.
KTM Product Description KTM PIPE HAVE German Quality Pex-Al-Pex Multilayer/Composite Pipe for Water and Heating
Overlap-welded or butt-welded;
With CE,ISO AS4176 ,SKZ ,Certification;
Coil length:50m,100m or 200m; 300m,400m ,500m
Color:White,red,blue,black,yellow or as customerized;
Packing:By kraft paper;PP white film,Carton or pallet;
Standard:DIN EN ISO 21003-2 Certified;
MWorking pressure 10bars. Max working temperature up to 95ºC; Used for : Water and gas systerms Size : from 16-63mm Supply both for pipes and fittings Service life: 50years
SPECIFICATION AND COIL INFORMATION

Norminal(mm)		14	16	18	20	25	26	32
Outer(mm)		14.0	16.0	18.0	20.0	25.0	26.0	32.0
Inner(mm)		10.0	12.0	14.0	16.0	20.0	20.0	26.0
Thickness(mm)	Wall	2.0	2.0	2.0	2.0	2.5	3.0	3.0
	Alu	0.19	0.21	0.23	0.25	0.25	0.25	0.3
Unit Weight(g/m)		100	105	120	140	210	230	310
Standard Length(m/coil)		100/200	100/200	100/200	100/200	50	50	50
CBM/Coil		0.04/0.06	0.044/0.083	0.064/0.104	0.109/0.064	0.101	0.11	0.125
Color		White/Red/Yellow/Blue/Black/or as customerized
Remarks:Aluminum thickness can be made as your requested

---
