Automatic High Capacity Waste Tyre Recycling Machine 40t Continuous Pyrolysis Plant Oil Distillation Machine

Product Description

Product Description Company Profile Our Qingdao Longyuan Baihong Machinery Equipment Co., Ltd is a big manufacturer for Pyrolysis Equipment for 22 years in China. We located at Qingdao-----a beautiful and Industry developed city.We established in year 1997, our main products are environment pyroloysis equipment.The company has passed ISO9001 certification, CE certification and SGS international third party certification.To the overall design, production and manufacturing, installation and commissioning, technical training, after-sales service in the whole industrial chain operation of high-tech enterprises.

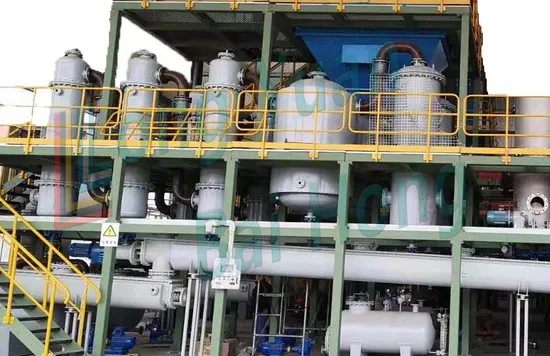

Product details The waste tire pyrolysis plant is decomposed into oil vapor by high temperature pyrolysis technology, and the oil vapor enters the cooling system through the oil gas separator, wherein the oil flows to the oil tank, and the pyrolysis gas passes through water seal to the gas recovery system to become the main furnace fuel. Realize continuous production.

No	Specification	Fully continuous waste tyre/plastic/rubber prolysis plant
1	Model	BH-FC30	BH-FC40	BH-FC50	BH-FC60
2	Working type	Fully continuous	Fully continuous	Fully continuous	Fully continuous
3	Raw Material	Waste tires,waste rubber,waste plastic,waste acrylic,oily sludge
4	24 hour handling capacity	30T	40T	50T	60T
5	24 hour oil production	14T	18T	22T	27T
6	Heating way	Directly heating	Directly heating	Directly heating	Directly heating
7	Working pressure	Ordinary pressure	Ordinary pressure	Ordinary pressure	Ordinary pressure
8	Cooling way	Water cooling	Water cooling	Water cooling	Water cooling
9	Water consumption	10T/H	12T/H	16T/H	20T/H
10	Noise	≤85DB(A)	≤85DB(A)	≤85DB(A)	≤85DB(A)
11	Total weight	60T	68T	75T	80T
12	Area	47*10*9M	53*10*9M	55*10*9M	58*10*9M

Products Process
1.Raw Material
2.Final Products
Our Advantages 1.Outstanding Features: a. The reactor need preheat at the first when the machine starts producing.
b. 24h continuous working for 20-30 days without any stops.
c. No need fuels, sync gas is recycled during the operation.
d. Large daily capacity:20-25T/D;25-30T/D
e. New desing of vertical condensers. Good oil quality with high profit.
f. Low requirement on the raw materials.
2. Security:
a: Adopting automatic submerged-arc welding technology
b: All of the welding will be detected by the ultrasonic nondestructive testing method to ensure the welding quality and the
welding shape. c: Adopting manufacture process controlling system on the quality, every manufacture process, manufacture date, etc. d: Equipped with anti-explosion device, safety valves, emergency valves, pressure and temperature meters, as well as the alarming
system.
3. Environmental-friendly:
a: Emission Standard: Adopting special gas scrubbers to remove acid gas and dust from smoke b: Smell during operation: Fully enclosed during the operation c: Water pollution: No pollution at all. d: Solid pollution: the solid after pyrolysis is the crude carbon black and steel wires which can be deep-processed or sold
directly with its value.
workshop

Shipping & Packing
Our service
1.Quality warranty period: One year warranty for the main reactor of pyrolysis machines
and lifetime maintenance for complete set of machines.
2.Our company sends engineers for installation and commissioning in buyer's site including the training of skills of buyer's
workers on operation, maintenance, etc. 3. Supply layout according to buyer's workshop and land, civil works information, operation manuals, etc. to the buyer. 4. For the damage caused by the users, our company provides the parts and accessories with cost price. 5. Our factory supplies the wearing parts with the cost price to clients.

---
