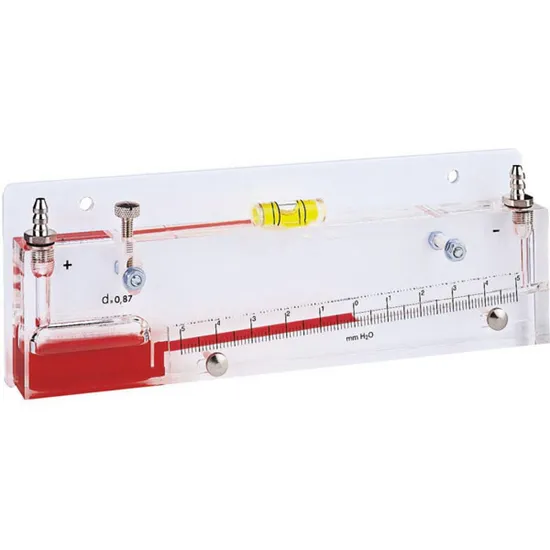

Tx Series Inclined Liquid Column Manometers

Product Description

Specification

Item	Gauge
Warranty	1 YEAR
Customized support	OEM, ODM
Place of Origin	China
	Zhejiang
Brand Name	As customer's request
Model Number	DP-200
Pressure range	0-200PA
SIZE	196MM*84MM
temperature range	-10-60ºC
Material	plastic
Accuracy	0.5%
Connection	side
Medium	gas
Certification	ccc
Model	DP-200

TX 25
Differential pressure	2,5-0-2,5 mmCE
Differential pressure	25-0-25 Pa

TX 50
Differential pressure	5-0-5 mmCE
Differential pressure	50-0-50 Pa

TX 75
Differential pressure	7,5-0-7,5 mmCE
Differential pressure	75-0-75 Pa

TECHNICAL DETAILS
Parameters	Differential pressure
Manometer type	Inclined liquid column manometer
Manometric liquid	AWS 10 red oil, density 0.87 at 15°C
Maximum static pressure	6 bars
Reservoir capacity	20 ml
Wall-mounted	With or without white PVC support

Company Profile
Derkia Automation Technology Co.,Ltd is the global market leader in pressure gauge, gas regulator and temperature measurement technology. We work with our customers to develop comprehensive solutions based on our high-quality measurement technology components, which are ultimately integrated into their business processes. The products include pressure gauges, gas pressure regulator, pressure switches, thermometers and more, we always provide solutions for pressure and temperature measurement and control systems. We deliver millions of quality products to more than 100 countries every year. With advanced equipment and excellent management, we have won a good reputation from all customers.
Packing&Shipping
FAQ Q:What do I need for offering a quote?A: Please offer us product photo,quantity,application,or samples.Then we will quote the best price within 24 hours for you.Q:How about the MOQ?A:MOQ depends on your need ,besides,we welcome trial order before mass-production.Q:What is the delivery time?A:Usually it takes 15-25days after customer confirms the order.Q:What kind of payment terms do you accept?A:T/T,L/C,Escrow,paypal,western union,moneygram.Q:Is it possible to know how is my product going on without visiting our company?A:We will offer a detailed products schedule and send weekly reports with digital pictures and vedios which show the machining progress.

---
