| US$28,336.00-37,565.00 | 1 SET (MOQ) |

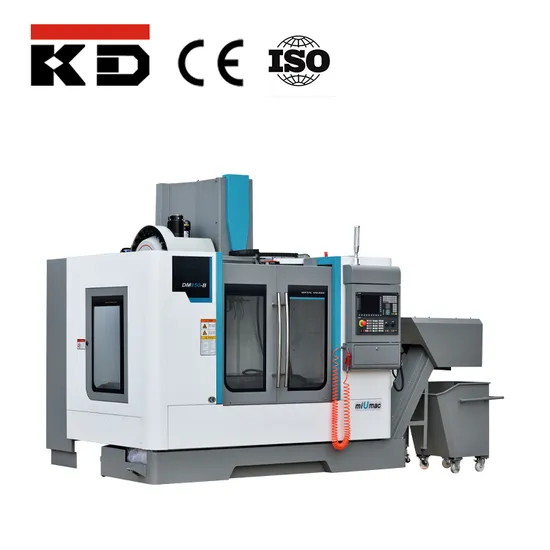

| MODELS | DM852 | DM1052 |
| TRAVEL | | |
| X axis | 800mm | 1000mm |
| Y axis | 520mm | |
| Z axis | 520mm | |
| Spindle center to column | 550mm | |
| Spindle end to table | 150-670mm | |
| TABLE | | |
| Table size | 950×510mm | 1130×510mm |
| T-slot(width×number×space) | 18mm×5×100mm | |
| Max. table loading | 800kg | |
| SPINDLE | | |
| Taper bore of spindle | BT40 | |
| Spindle power | 11/15kw (FANUC) | |
| Spindle speed | 8000rpm | |
| FEED | | |
| X/Y/Z fast feed | 36/ 36/ 36m/min | |
| Motor power/torque of X/Y/Z | 3/3/3 kw (20Nm) | |
| Guide ways number of X/Y/Z | 3/3/2 (ball type) | |
| Linear guide width of X/Y/Z | 35/35/35mm | |
| Diameter and screw pitch of X/Y/Z lead screw | Ф40x12mm (C3 level) | |
| Bearing number of X/Y/Z lead screw | 7/7/7 | |
| ATC | | |
| Tool number | 24 | |
| Max. tool length | 300mm | |
| Max. tool weight | 8kg | |
| Time (tool-tool) | 2s | |
| ACCURACY | | |
| Positioning | ≤0.006mm | |
| Repeatability(X/Y/Z)(ISO) | ≤0.004mm | |
| OTHERS | | |
| Pneumatic boosting cylinder | 3.5T | |
| Power of coolant pump | 550w | |
| Capacity of lubrication pump | 2L | |
| Capacity of coolant tank | 200L | |
| Min. Input | 0.001mm | |
| Overall dimension (L x W x H) | 3750x2300x2700mm | 4300x2300x2700mm |
| Net weight | 5150kg | 5480kg |
