Wisdom CNC Granite Marble Cutting Rock Wire Saw Machine for Stone Quarry Trimming Block Squaring

Product Description

Machine Features
1. The machine adopts CNC control system, man-machine integration operation interface, supplemented by super high precision servo motor drive.
2. lifting is controlled by four independent guide rail, flywheel around walking up and down the track, stable equilibrium.
3. The flywheel adopts tensioning force balance method, improve the service life of emerald beads rope.
4. The Z axis Y speed can be adjusted according to the texture of stone material, improve the cutting precision of the aliens.
5. In high speed moving parts adopt imported high quality spare parts, and cutting with high efficiency, high cutting precision, high stability, easy and flexible operation etc, especially suitable for the high value of granite, marble plate cutting profile processing.
Specification

Parameter	Unit	2000	2500	3000	3500
Max Processing Size(L*W*H)	mm	2500×2000×1500	2500×2500×1500	2500×3000×1500	3500×3500×2000
Guide wheel distance	mm	500-2000	500-2500	500-3000	500-3500
Diamond wire length	m	14.5	15.7	16.5	19
Wire diameter	mm	7.6-10.8			7.6-10.8
Worktable Size (L×W)	mm	2500×1300			2000×2000
Main Motor	kw	11/15			18.5
Table Max. load	T	20			30
Water Consumption	m³/h	4			6
Tension mode		Hydraulic
Tension force range	kg/cm2	50-70
Production	m2/h	Marble:2 ,Granite:1. (Depends on stone hardness.)
Guide wheel diameter	mm	220
Wire-cutting speed	m/s	25-30
360° rotating worktable		Optional
Production	m2/h	Marble:2 ,Granite:1. (Depends on stone hardness.)
Dimension	mm	6700×5350×4200	6700×5850×4200	6700×6350×4200	7000*9000*2000
Weight	kg	4900	5000	6000	8500

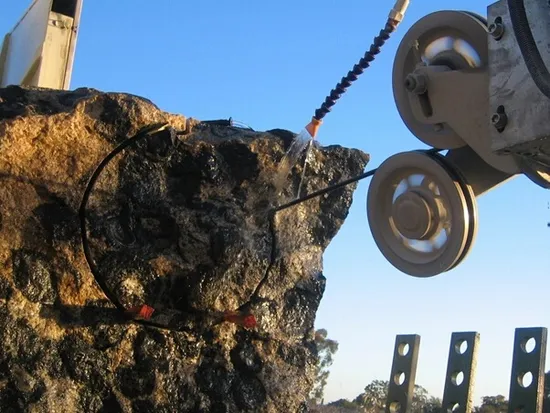

Machine Pictures
Company Intruction
You can always trust Wisdom
With more than 10 years committed to the stone machinery industry, Wisdom Machine is an experienced manufacturer.
Our machines are designed with American standard, and for maximum durability and high efficiency so that we can provide competitive stone machines for customers and continuously create value for customer, to achieve mutual benefit.
Package and Loading
Other Products
Q: ARE YOU MANUFACTURER ?
A: Yes,We are a branded company with its own factory,With more than 10 years committed to the stone machinery industry, Wisdom Machine is an experienced manufacturer.
Q: CAN YOU MAKE CUSTIMZED STONE MACHINE?
A: Sure. We have experienced and professional engineer, to make custmized stone machine is our advantage,Welcome OEM and ODM orders.
Q: HOW TO ENSURE PRODUCT QUALITY?
A: Our machines are designed with American standard,raw materials have quality control tests and the qualified products after inspection will enter the production workshop.In addition, complete the QC comprehensive inspection before packaging. QC will conduct a comprehensive inspection of our products prior to shipment.
Q: WHAT'S YOUR MOQ AND DELIVERY?
A: Our MOQ is 1 set.For standard machine, takes around 20-30 days, for custimzed machine, lead time will depends.
Q: WHAT IS YOUR WARRANTY TIME?
A: We provide 12 Months free parts warranty for our bridge saw.
Q: IS THE MACHINE EASY TO OPERATE?
A: Yes, Our machines are PLC full automatic,With easy operation interface available in English and Spanish.Feel free to contact us if have any questions or confusion,we will provide free professional online guide for you until you could use machine well.

---
