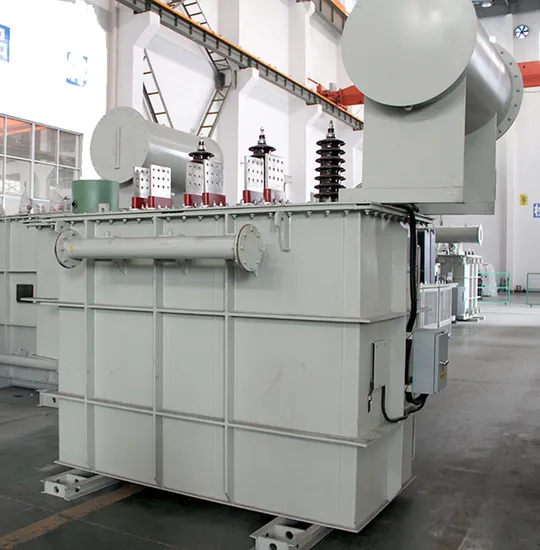

Hsspt -30000/33kv Ladle Furnace Transformer 30mva for Steel Plant Furnace

Product Description

Product introduction:
Ladle transformer is used as ladle power transformer. Using high power electric furnace, the furnace and
continuous casting and rolling refining outside "quaternary" process equipment, it is the development direction
of Chinas steel enterprises. The process of molten steel is beginning to refine and respectively in two different
equipment. To melt and initial adjustment only plays the role of furnace, composition of high power function
adequately, increase production capacity of electric arc furnace, improve steel production. However after
second time refine the quality of steel was improved highly and easy to adjust, which greatly improve steel
components, expand the varieties of steel ladle, so is being widely used. In the early 1970s introduced from
China, ladle, production of similar products also arise, in the 1990s ladle and ladle transformer have developed
rapidly, and in 1997 by the industry standard JB/implementation of T8594-1997 "ladle.
Main function and characteristic
Electric furnace transformers are transformers which supply power to the electric furnaces. It can drop high
voltage to the working voltage the electric furnaces need.
There are many kinds of electric furnaces,so there are many kinds of electric furnace transformers cooperating
with them.Now,our company manufactures following electric furnace transformers:electric furnace transformers
used in steelelectric furnaces(including on-laod,no-load and enclosed reactor) ; mineral hot furnace
transformers used to smelt kinds of iron alloys,hydrosilicons,carbides,etc(single phase,three phases on-load
and no-load tap changer).They are low loss and energy-saving products.Cooling methods are self-cooling,
forced oil water cooling, etc.It can be designed specially according with customers' requirements.
The model of the electric furnace transformer is expressed as follows:
The meaning of model:
H--Steelmaking arc furnace,HJ--ladle furnace,HZ--electro-slag furnace,HC--calcium carbide furnace,HK--mineral
hot furnace,HG--line frequency induction furnace;
Number of phase:D--single phase,S--three phase;
Types of cooling device :ONAN,wind cooling F,water cooling S.
The methods of oil circulation:natural circulation,forced oilcirculation P.
Tap changer:off-circuit tap changer,OLTC Z.
Enclosed attached device:changing leakage flux,enclosed reactor K.
Rated capacity:KVA.
Voltage class:KV.
Reference:
Order Instructions When you choose our company product, please offer following data: Transformer model: Rated capacity: kVA Phase : Three-phase Single-phase Frequency : 50HZ 60HZ Rated voltage ( H.V. / L.V. ): Tapping range: ± × % Insulation level: LI AC / LI AC kv Veotor group: Dyn11 Yyno Other Short-circuit Impedance: % Cooling method: ONAN ONAF Tapping method: OLTC OCTC Other Other requirement: Notes: We also can design special products according to customer's particular requirements. The final dimension is subject to outline drawing.

---
