DC24V DC12V Wireless Controller for PWM and Psv Valve Applications

Product Description

Product Parameters Transmit Rate: A blazing-fast 38400 bit/s ensures swift and seamless operation.
Transmit Power: Impressively efficient at <=22dBm, delivering robust performance.
Adjacent channel rejection: Outstanding at -60dBm, ensuring minimal interference.
Modulation mode: Versatile LoRa/GFSK to suit diverse applications.
Receive sensitivity: Exceptional at -126dBm, capturing even the faintest signals.
Real-time property: Dual CPU real-time control for unmatched responsiveness.
Dedicated address code: Enhanced security with a 16-bit dedicated address code.
Control distance: Extending beyond 100m, it offers expansive operational range.

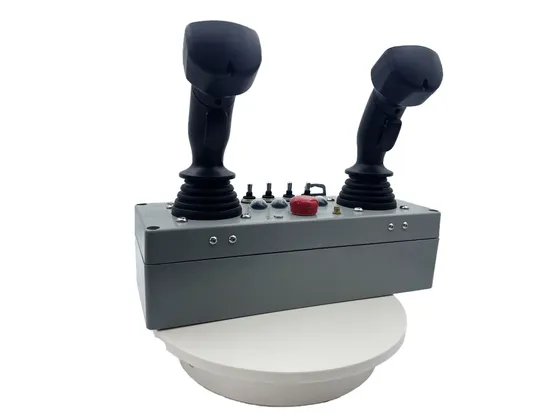

Transmitter form: Ergonomic joysticks for intuitive and precise control.
Transmitter power supply: Powered by a robust 3.7 VDC (50000mAh Li-ion battery).
Transmitter working current: Efficient operation at less than 100 mA.
Transmitter low voltage: Safe operation with a threshold at 2.8VDC.
Transmitter fault alarm: Alerts via screen, beeper, or LED for prompt awareness.
Transmitter antenna: Choose between built-in or external for flexibility.
Transmitter screen (optional): Vibrant 320*240 resolution TFT display.
Receiver Power: Flexible input range from 10-30V DC for adaptability.
Receiver rated power: Energy-efficient at <=6W, minimizing consumption.
Receiver fault display: LED indicators for immediate fault identification.
Output contact capacity: Durable with a capacity of 5A/250VAC.
Output interface: Water-resistant contact or heavy-duty plug-ins for reliability.
Receiver antenna: Preferred external type for optimal signal reception.
Standard Accessories Included: One AC-DC charger for convenient power replenishment.
Included: One on-board charger for versatile charging options.
Included: A USB-TypeC charging cable for modern connectivity.
Included: Two high-capacity Li-ion batteries for extended use.
Included: Two receiver antennas to ensure consistent performance.
Included: A waterproof connector cable for secure connections.
Included: A comfortable shoulder strap for ease of transport.
Included: An instruction manual for easy setup and operation.
Included: A certificate to ensure quality and compliance.
Included: An output schematic for clear and precise guidance.
Structural Parameter Transmitter weight: Lightweight at 1.05kg (excl. battery) for ease of handling.
Transmitter dimension: Compact 257mm x 119mm x 151mm (L x W x H) for portability.
Transmitter housing material: Durable engineering plastic for longevity.
Receiver weight: A mere 0.8kg, ensuring easy installation and handling.
Receiver dimension: Streamlined 215mm x 172mm x 71mm (L x W x H) for space efficiency.
Receiver mounting aperture: Precisely designed with a Φ6mm aperture.
Receiver shell material: Sturdy engineering plastic for reliable protection.
Working temperature: Operates smoothly from -40ºC to 80ºC, enduring extreme conditions.
Working humidity: Efficiently functions between 0-97% RH, adapting to various environments.
Protection: Boasts an impressive IOP65 rating for superior protection against elements.
