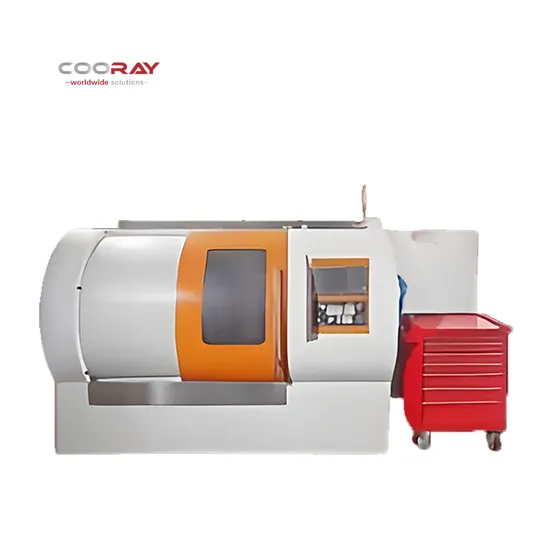

Cooray Crl-Osl Live Turret Dmh Hydraulic Sealing Ring Oil Seal Lathe

Product Description

Product Description

Product Description

Technical Characteristics
Maximum turning diameter	750(mm)
Max.swing over the bed	780(mm)
X-axis motion	450(mm)
Z-axis motion	650(mm)
Max.turning length	230(mm)
Max.workpiece length	460(mm)
Best roughness	0,4,0,6
Max.spindle rotation speed	3500(r/min)
Diameter of bore in spindle	60(mm)
Main drive capacity	11/15(kW)
Max.operating current	63(A)
Capstan	Hydraulic
Quantity of capstan position	12
Type of mandrel body	VDI20
CNC system	Fanuc Oi-TF
Lathe dimensions	Length 2600(mm),Width 1800(mm),Height 1850(mm)
Weight	4500 (kg)
Volume of tank for dielectric	120(1)
Volume of tank for scrap	100(I)
Dimensions of tank for scrap	Length 650(mm),Width 1250(mm),Height 1600(mm)
Weight of tank for scrap	185(kg)

*Due to the constant updating and changing process of products,the parameters in this table can only be used as a reference,the latest parameters,please communicate with the seller.
The company produces a horizontalspecial cNc sealing ring processing ma-chine. The machine adopts the overall45° inclined bed design and linear balltrack to electively ensure the accuracyor the machine tool. All drive motors aremade of original servo motors, specialsealing ring turing lixtures and servoturret, which can meet the processingaccuracy requirements of non-standardseals of any material, any specificationand any size. At the same time, it isequipped with knife sharpener, crusherand chip absorber

---
