Stone Cutting Machinery Bridge Multiblade Block Cutter

US$32,000.00-38,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
RS-2800
Type
CNC Cutting Machine
Usage
Granite, Marble
Application
Construction, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Certification
ISO, CE
Max Blade Diameter
2800mm
Max Processing Length
3300mm
Max Processing Width
2500mm
Max Lifting Stroke
1400mm
Water Consumption
15m³/H
Main Motor
37/55kw
Gross Motor
65kw
Gross Weight
13500kg
Transport Package
Standard Packaging
Specification
950*470*350cm
Trademark
Ruisheng
Origin
Fujian, China
Production Capacity
100pieces/Month

Packaging & Delivery

Package Size
950.00cm * 470.00cm * 390.00cm
Package Gross Weight
13500.000kg

Product Description


Product Description
/Product name /Unit RQC-2200-4D PRO RQC-2500-4D PRO RQC-2800-4D PRO
/Blade diameter mm Φ2200 Φ2500 Φ2800
/Maximum lifting stroke mm 1400 1400 1400
/ Maximum machining length m 3800 3500 3200
/ Maximum processing width ne 2200 2200 2200
/Saw blade number pcs 3-18 6-18 9-18
/Wate consumption m3/h 15 15 15
/ Main motor power Kw 45 55 65
/Total power Kw 56 66 76
/Weight kg 16000 16500 17000
/Overall dimensions(LxWxH) m 8.0x4.4x3.7 8.0x4.4x3.7 8.0x4.4x3.7

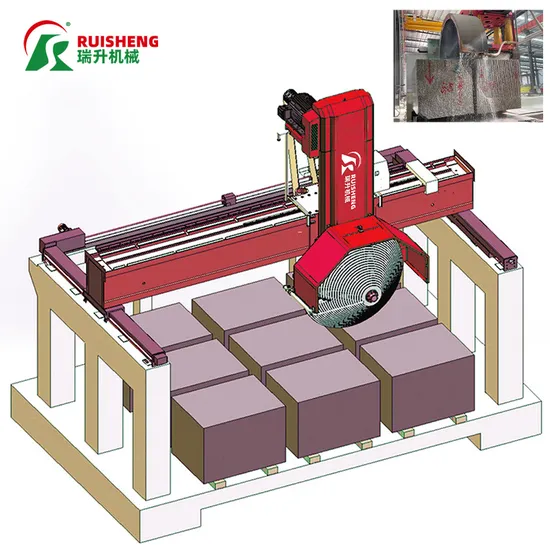

RS-2200/2500/2800 uses a PLC system and Human-machine interface, combined with an Ultra-high precision rotary encoder to slice, uses an inverter to control left-right feeding, and adjusts the speed according to the stone material. It uses a hydraulic lifting system, and the forward-backward slicing uses high-precision screw nut driving, and automatic slicing, main spare parts adopt imported good-quality materials, The block can be placed on the ground directly and economize the worktable and its maintenance costs: The whole machine is featured with high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit granite and marble block with high value.
Note:360 rotating worktables can be selected if the customer requires it.
