| US$53,521.13-54,929.13 | 1 Piece (MOQ) |

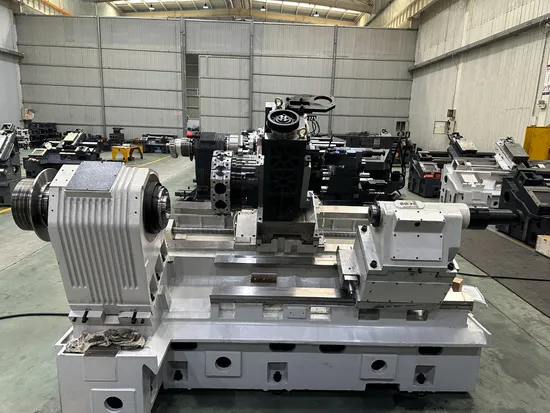

| JT-RCK56 | |
| Max spindle speed | 4000rpm |
| Center distance | 900mm |
| Processing diameter over bed | 300mm |
| Min spindle speed | 50rpm |
| Main drive power | 22kw |
| Machine height | 2200mm |
| Spindle bore diameter | D 65mm |
| Tool size | 20*20mm |
| Bar diameter | 52mm |
| Swing over bed | D 550mm |
| Swing over crossslide | D 400mm |
| Machine weight | 5500kg |
| X axis travel | 330mm |
| Y axis travel | 100mm |
| Z axis travel | 600mm |
| Chuck size | 8'' |
| Revolver type | BMT45-12 |
| Bed type | 45degree |
| Machine width | 1800mm |
| Specifikation: Coolant system Tailstock with hydraulic sleeve Programmable tailstock drive Spindle unit with water coolant Food pedal for spindle clamp/unclamp and for sleeve Air conditioner Hudraulic 3-jaws chuck with hudraulic cylinder 8" Automatic lubrication system Chip conveyor Coolant through tool holder body Coolant gun RGB signal lamp Air gun Led working light Full splash guard Machine status indication Tool setter mechanical Optical linear scales on X/Z axis Automatic door Tool box Electronic pressure control unit in chuck | |
| Standrart accessories, 1.Foot Pad Iron 1 set 2.Turning Tool Holder (External Turning Tool Clamp 25X25, 5 sets/End Face Tool Holder 25X25,1 piece/Boring Tool Holder φ40 , 2 pieces/Tool Sleeve 32, 25, 20 , 1 piece each) 3.Chip Collection and Cooling Box 1 set | |
