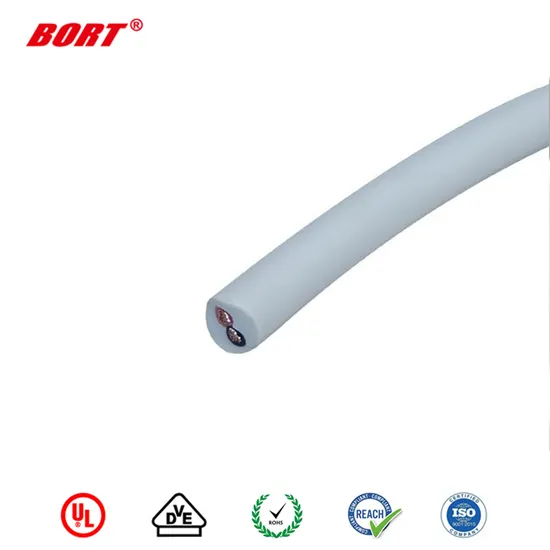

Awm 2464 VW 1 80c 300V Electric Wires Cables PVC Copper Multi Core Computer Cable

US$0.04-0.91 1,000 Meters (MOQ)

Basic Info.

Model NO.
UL2464
Cover Material
PVC
Type
Hook-up Wire
Material Shape
Round Wire
Conductor Type
Stranded
Wire Core Material
Copper
Certification
ISO, RoHS, Reach
Model
UL2464
Brand
Bort
Color
White Blue Red Black Yellow
Rated Voltage
300V
UL Flame Test
UL Vm-1
Current
DC/AC
Production Process
Welding
Species
Terminal
Character
Environmental Protection
User
Socket Terminals
Factory Management
ISO9001:2015
Transport Package
Coil
Trademark
BORT
Origin
China
HS Code
8544492900
Production Capacity
500000km/Per Year

Packaging & Delivery

Package Size
20.00cm * 20.00cm * 15.00cm
Package Gross Weight
0.200kg

Product Description


★Rated temperature:80ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2
★Solid or stranded,tinned or bare copper conductor
★PVC insulation
★Tinned or bare stranded copper drain wire
★Tinned or bare stranded copper wire overall more than 80% coverage braided shield
★PVC jacket
★Passes UL VW-1 FT1 vertical flame test
★Uniform insulation thickness of wire to ensure easy stripping and cutting
★Sound broadcast,audio,instrumentation&computer
AWG/NO.OFCOND No./mm mm m/n/d mm mm
24×2C 11/0.16 0.25 16/4/0.10 0.80 4.35
24×3C 11/0.16 0.25 16/4/0.10 0.80 4.50
24×4C 11/0.16 0.25 16/5/0.10 0.80 4.80
24×5C 11/0.16 0.25 16/6/0.10 0.80 5.10
24×6C 11/0.16 0.25 16/6/0.10 0.80 5.45
24×7C 11/0.16 0.25 16/6/0.10 0.80 5.50
22×2C 17/0.16 0.25 16/5/0.10 0.80 4.75
22×3C 17/0.16 0.25 16/6/0.10 0.80 4.95
22×4C 17/0.16 0.25 16/6/0.10 0.80 5.30
22×5C 17/0.16 0.25 16/7/0.10 0.80 5.65
22×6C 17/0.16 0.25 16/8/0.10 0.80 6.05
22×7C 17/0.16 0.25 16/8/0.10 0.80 6.10
