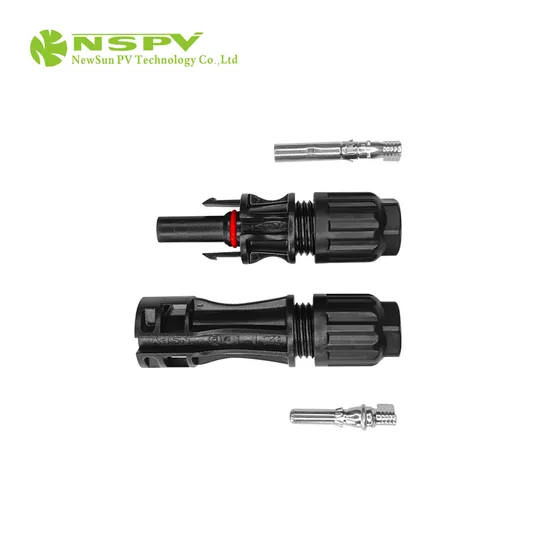

Male and Female Cable Connector for Different Terminals 1500VDC Cable Connector

Product Description

Product Description

Insulation material	PPE/PA	Safety degree	II
Rated voltage	1500VDC	Flame class	UL94-V0
Rated Impulse voltage	16KV	Installation type	Outdoor,UV resistant(F1)
Test voltage	8kV(50Hz,1min)	Ambient temperature range	-40ºC…+85ºC(IEC)
contact resistance	≤ 0.25 mΩ	Suitable cable cross sections	1.5~16mm2 /16~6AWG
Contact material	Copper,Tin plated	Connecting system	Crimp connection
Degree of protection	IP68(1m,1H)	Nut cap locking force	1.5-1.8Nm
Overvoltage category/Pollution degree	CATIII/2	Upper limiting temperature	110ºC(IEC)

Detailed Photos
Certifications
Packaging & Shipping
Company Profile
NewSun PV Technology Co. Ltd ( NSPV ) strives to make contribution to energy saving, low carbon emission,environmental protection, and will continuously push forward to the development of green renewable energy. The company integrates design,development, research, production, sale as the modern management of enterprises.Our product line includes PV solar system ( connectors, junction box, Pv cable, installation accessories, controller, distribution box & combiner box, inverter & micro-inverter and bracket, etc.), Protection System ( earth-fault protection, diode connector, fuse connector, circuit breaker, etc. ) and System Optimization.
Our products meet the standard of TUV, CE,SAA,CE certification. Also the field covers the PV system application, solar street light, solar hybrid street lighting, etc. and Energy Performance Contracting (ERP).
"Exploration and innovation, quality, honesty and pragmatism, win-win cooperation, social responsibility" is the concsistent spirit for NewSun people.
Offer high quality, economical cost, safe solution and reliable technology with optimization in energy conservation and envrionmental protection is the solid goal for photovoltaic component manufacturers and system installers include NSPV.
We will continuously make contribution to "Green energy" and "World envrionmental protection" for establishing humans better tomorrow.
FAQ Q: How can I trust you and your company?
A: Dongguan Newsun PV technology Co.,Ltd has been established for above 13 years, our product were sold in many countries with good feedback, good quality, competitive price which mostly have been approved by TUV, CE and other EU institutions. Furthermore, our company has passed ISO9001 quality management system certification, hold the high-tech enterprise certificate and a number of patents.
Q: What's your shipment method?
A: We can ship by express, air, sea and train. Normally we checked and compared, then provide customer the most proper shipment method.
Q: If I want to release order, what's the process?
A: Thanks. You can send inquiry to us by Made-in-China, or send us by e-mail. We will reply within 24hrs.
Q: What's your contact information?
A: Our Add:14F, 12Building, No.52 Fuhai Road, Xiagang Community, Chang'an Town, Dongguan City, Guangdong.




Looking forward to your contact, thank you!

---
