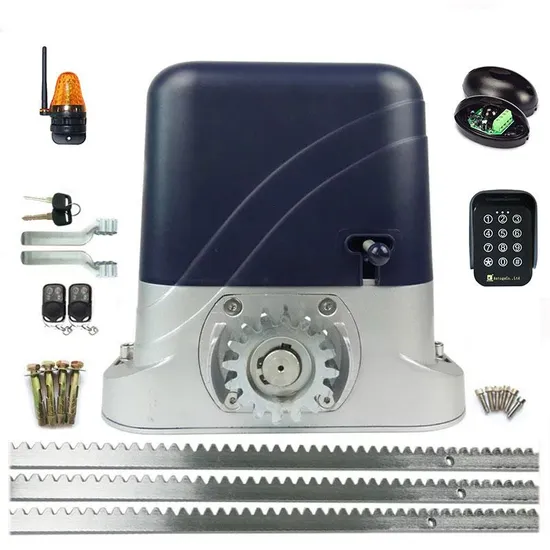

Heavy Duty 600 800kg Sliding Gate Motor Opener Automatic Door Operator

Product Description

Heavy Duty 600 800kg Sliding Gate Motor Opener Automatic Door Operator
Features Of The Sliding Gate Opener
1. New design and integrated control system without installing remote controller 2. Totally integrated electrical mechanical system (excludes racks) 3. Control board interface for optional impact-proof infrared photocells
4. Alarm lamp interface
5. Automatic delayed closing
6. Adjustable resistance sensitivity
7. Auto gate stop and re-open when an obstacle is encountered 8. Wireless remote control or wired remote control are optional
Technical Parameter
Sliding Gate Opener
Electric parameters
Working voltage: DC24V
Frequency: 433.92MHz
Communication model: ASK
Max thrust: 1200N
Running speed: 12M/min
Max weight of door: 800KGs
Storage battery technical specification: Optional
Voltage: DC24V [12V*2PCS]
Battery capacity: >9AH
Battery model: Plumbic acid (optional)
Solar power battery charging plate: Optional
Voltage: Peak value 36V
Power: 250W

Technical Parameter
Input voltage	220 V±10% 50Hz
Motor's power	200W
Working distance	50m
Output gear module	M=4
Output gear number	Z=16
Output rotational speed	50±10%r/min
Output torque	16.8-32.0N.m
Max pull	1200N
Open(close) speed	12 m/min
Net weight	10KG
Environment temperature	-25ºC~ +50ºC
Noise	≤55 dBa
Control board
Voltage	DC24V
Frequency	433.92MHz(other frequency customized)
Voltage	ASK
Memory capacity	10pcs rolling remote controls
Features:	1.Automatic delayed closing
	2.Adjustable resistance sensitivity
	3.Control board interface for optional impact-proof infrared photocells
	4.Alarm lamp interface
	5.Wireless remote control or wired remote control are optional

Accessory
Photocell:
Wifi Receiver
Gear Rack

---
