Wenovus Diesel Engine Rice Harvester Air Cooled Mini Combine Harvester Hilly Paddy Filed Operation High Quality

Product Description

Company Products
Our Advantages
1.Highest levels of vertical integration in the industry
ΦSuperior quality control
ΦStable, responsive supply chain
2.China and Thailand based manufacturing operations and supply chain
ΦAvoids anti-dumping tariffs (country of origin certified as Thailand for select categories)
ΦExcellent Thailand / U.S. government relationship
ΦStable Thailand supply chain and strong industrial base
3.Significant experience in contract manufacturing for well known brands
ΦStrength in maintaining costs low and ability to offer high quality competitively priced finished products to
ΦSupport channel partner brands
4.Wide range of gas and battery outdoor power equipment product categories
ΦMore than 10 categories in production, and adding more
ΦConfigurable products to customize solutions for retail and OEM customers
Product Description
Self-designed full gear transmission box, high transmission efficiency, reliable quality. Direct Gear Drive with Clutch, No pulley, No belt. . With steering,cutting table lifting and brake handle control system,it is efficient and safe . 350mm width crawler, allows larger ground contact area, can work in muddy fields at 30cm depth . Retractable feeding into the roller, feeding evenly without blocking . With sieve in grid type, high-efficient and thorough threshing, less grain loss in straw outlet. . With larger fan and winnowing roller, more accurately grain screening; With air outlet guide pipe, keeps operator away from dust

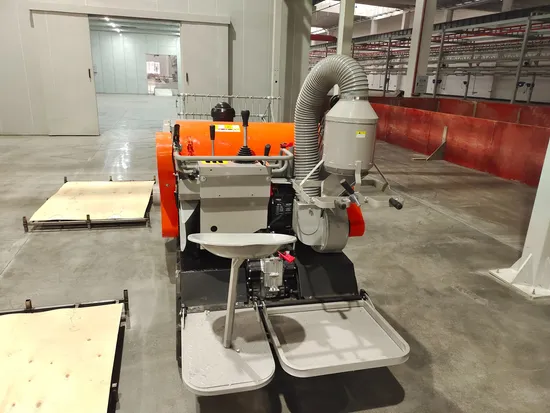

Detailed Photos

Product Parameters

MODEL NAME	WN-CH15
Type	Crawler Type, Riding Type
Dimension(mm)	3000*1380*1650
Net Weight(kg)	730
Cutting Width(mm)	1100
Ground Clearance(mm)	240
Average Ground Pressure(kpa/m2)	9.5
Feeding Capacity(kg/s)	2850×1350×1340
Speed	1
Traveling Speed(m/s)	0.4-1.4
Productivity(hm2/h)	above 0.06
Fuel Consumption(kg/hm2)	below 30
Engie Model	WN1100FE Diesel
Rated Power(kw)	9.5
Starting System	Electric Start
Hearder Lifting System	Hydraulic
Reel Diameter(mm)	730
Tilling depth(mm) ≥120	≥120
Lost Rate	2.5%
Break Rate	0.7%
Impurity Rate	5%
