Basic Info.
Transport Package

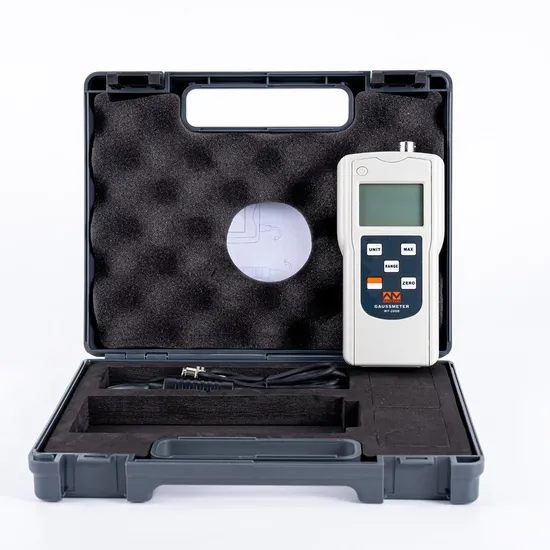

Carrying Case for Digital Gauss Meter, Tesla Mete
Production Capacity
50000/Year
Packaging & Delivery
Package Size
25.00cm * 20.00cm * 6.00cm
Package Gross Weight
2.000kg
Product Description
Detail Product Description
Product Description
It can be used to measure the magnetic induction intensity of DC magnetic field, AC magnetic field and other magnetic fields.
Product Feature
* Portable, wide range.
* Easy to operate, clear LIQUID crystal display.
* There are measurement/peak retention, mT/Gs unit conversion.
* 200mT/2000mT range conversion, etc.
Product Parameters
Product Parameters
| Measuring range | 0~200mT~2000mT |
| Frequency range | 10Hz~200Hz |
The accuracy of
| 0~100mT 2%, above 100mT 5% (measured in a uniform magnetic field) |
| Magnetic field under test | Dc magnetic field (static magnetic field)
|
Functional specifications
| Peak retention Gs(Gauss) /mT (Millitesla) can be switched freely
|
| Dc polarity of measurement | N for positive, S for negative
|
| Operating Conditions | 5ºC~40ºC |
| Relative humidity | 20%~80%(There is no dew)
|
| Power supply | Four no. 5 batteries can be externally connected to a 5V stabilized voltage supply |
| Overall dimensions | 140mm (L) X73mm (W) X 30mm (H) |
Instrument weight
| 180g |
Display mode
| 41/2LCD |
| According to the unit | mT/Gs |
Product Accessories
| Standard Accessories | Main engine (one)
|
| | Hall sensor (one) |
| | Operating Instructions (one copy)
|
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
