Jwell Bottle Barrel Drums Water Tank Extrusion Gallon Chemical Bucket Blow Molding Machine Full Electric Plastic Blow Mould Extrusion Machine

Product Description

Product Description

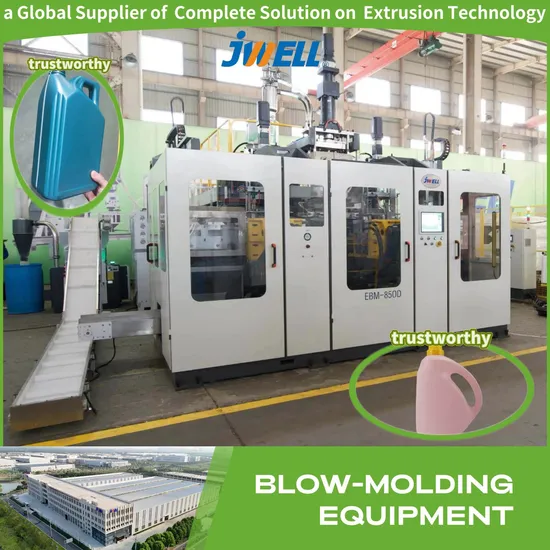

JWELL-EBM Full Electric Blow Molding Machine 1.Suitable for producing 1-5L different size of gear oil bottle, lubrication oil bottle, cooling water tank etc.
2.Optional multi-layer co-extrusion.
3.Optional view strip line system.
4.According to the product size,select different cavity of die head.
5.According to the different material,optional JW-DB single station hydraulic screen-exchanger system.
6.According to customer's requirement,optional auto-deflashing on line,scrap conveying on line,finished product conveying on line.
Control system
B&R Austria human-machine interface and parison programmer.
can adjust within 300 points.
Extrution & Die head
The extruder uses screw and barrel, which is a famous brand JinHaiLuo all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.
JWELL supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.
Blowpin system
Adopt fully servo driving motor.
Output system
Take out robot
Scrapping collect together, convey,crusher into one unit
Open&Closing system Adopt fully servo driving motor
OPTIONAL FUNCTIONS
1.Multi-layer, multi-cavity.
.
2.Weighing feeding material system3.Screen changer system.
4.Online leak detection, visual detection, packaging and other auto-mation equipment.
Product photos
Performance and advantages
1.Full electric system, energy saving and environmental protection, 50%~60% energy saving comparing tohyaraulic system.
2.Servo motor drive, high movement accuracy, fast response, stable start and stop without impact.
3.Using fieldbus control, the whole machine is integrated into the system, which can monitor the running data of the host andauxiliary machine in real time, and realize the collection and data management.
4.Multi-point dynamic adjustment curve of wall thickness, automatic data fitting, smooth transition of type embryo.
5.The extruder adopts high efficiency screw, high output, low energy consumption.
6.Using Jwell fifth generation U type clamping structure, clamping force uniform and stable.
7.Short molding cycle and high cooling performance.
8.Automatic production, effectively reduce personnel costs and management costs.
9.No leakage, low noise equipment, suitable for food, medicine, cosmetics and other products with high reguirements
forcleanliness.
10.Mold and carriage device simple maintenance, low cost, can achieve large torgue control. Technical parameters

Technical parameters
Model	Unit	JWELL-EBM-420D	JWELL-EBM-520D	JWELL-EBM-650D	JWELL-EBM-850D
Main screw diameter	mm	65	65	75	90
Screw L/D	--	25:1	30:1	30:1	30:1
Screw rpm	r/min	25-75	25-75	25-75	25-75
Max plasticizing capacity(PE)	kg/h	65-75	100-105	110-130	180-200
Platen size W*H	mm	330X286	420X390	580X450	780*400
Mould thickness	mm	140	180	240	320
Clamping force	KN	50	80	180	240
Dry cycle	S	2.3	3.2	4	4.8
Platen moving stroke	mm	420	520	650	850
Note: nformations isted above are for reterence onlv, the production ine can be desianed ov customer's reauirements.

packaging&Shipping
In order to ensure the integrity of the goods in long-distance transportation, to avoid damage to the goods in sea transportation and corrosion of the sea water to the goods, to avoid damage in the process of freight transportation, we use the outer package-wooden box and the inner package-plastic wrap packaging to ensure the safety of the goods.If you have special needs, you can also tell us, we will do our best to do and let you rest assured

Company Profile
JWELL is a global supplier of complete solutions on extrusion technology.
Oriented from Shanghai, JWELL Mlachinery Co., Ltd is the largest manufacturer of extrusion machinery in China, its 8production bases are located in Jiading District of Shanghai, Zhoushan City of Zhejiang Province, Taicang city of jiangsuProvince, Liyang City of Jiangsu Province, Haining city of Zhejiang province,Chuzhou City of AnHui Province, Quaniao cityof AnhuiProvince and Thailand. Totally covering areas more than 1,000,000 square meters.t has more than 3000staffs, about 580 technicals and managing staffs with over 500 national patents, We produce more than 3000 advancedextrusion lines every year, which were exported to 120 countries and regions over the world. Jiangsu Jwell Intelligent Machinery Co., Ltd. is a high-tech manufacturer dedicated to the research, development and manufacture of plastic extrusion equipment. Our main products are all kinds of plastic sheet, plate, film extrusion equipment. We not only have professional R&D team, experienced technicians, but also advanced production and processing base and standardized assembly workshop. Our customers are all over China as well as overseas countries and regions. Based on the enterprise spirit of "Excellent Quality, Perfect All", we are constantly exploring the new field of extrusion.
